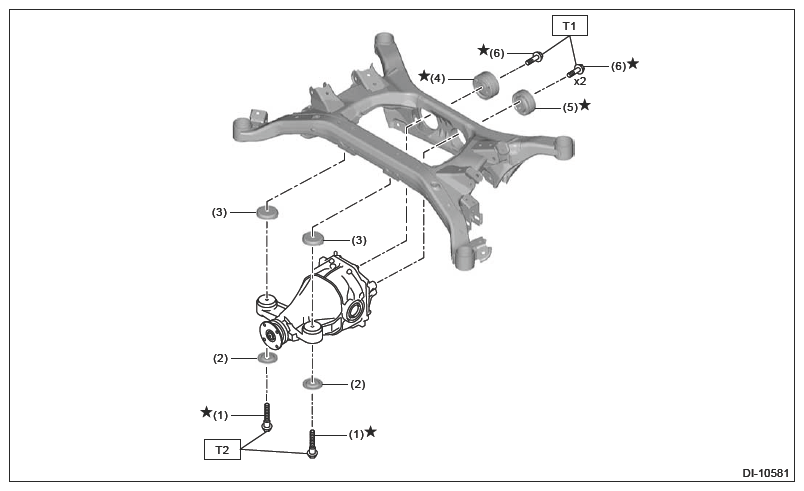

Rear Differential Mounting System
| (1) | Bolt |
| (2) | Rear differential mount stopper LWR |
| (3) | Rear differential mount stopper UPR |
| (4) | Rear differential mount bushing RH |
| (5) | Rear differential mount bushing LH |
| (6) | Bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 62 (6.3, 45.7)
T2: Ref. to DIFFERENTIALS>REAR DIFFERENTIAL>INSTALLATION .
