Power Window System (Diagnostics): Electrical Component Location: Location

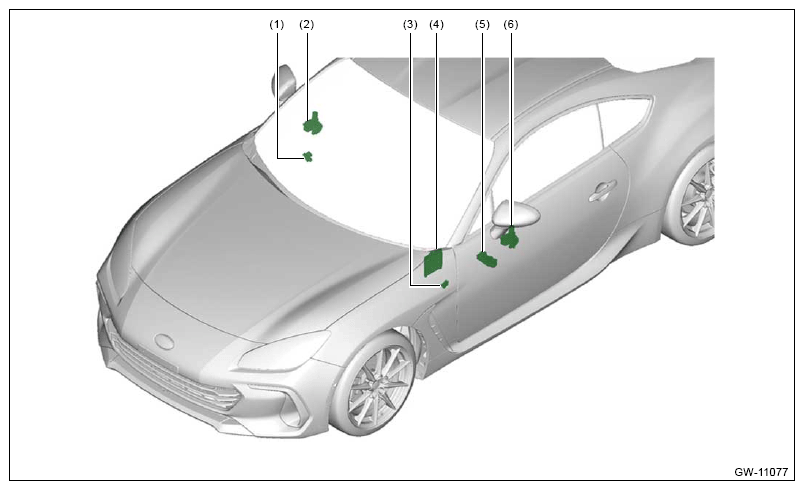

G16528702Courtesy of SUBARU OF AMERICA, INC.
(1) Front power window subswitch
(2) Front power window motor (passenger's side)
(3) Data link connector
(4) Body integrated unit
(5) Power window main switch
(6) Front power window motor (driver's side)
