Front Hood Lock

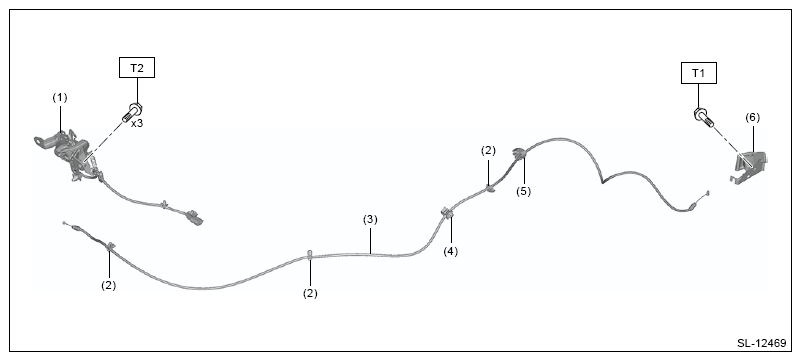

Fig 1: Front Hood Lock Components Location

G16527129

Courtesy of SUBARU OF AMERICA, INC.

(1)	Lock ASSY front hood
(2)	Clip
(3)	Cable ASSY front hood
(4)	Clip
(5)	Clip
(6)	Opener handle

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
