Body Control System (Diagnostics)
>>
General Description
>>
System Block Diagram
System Block Diagram

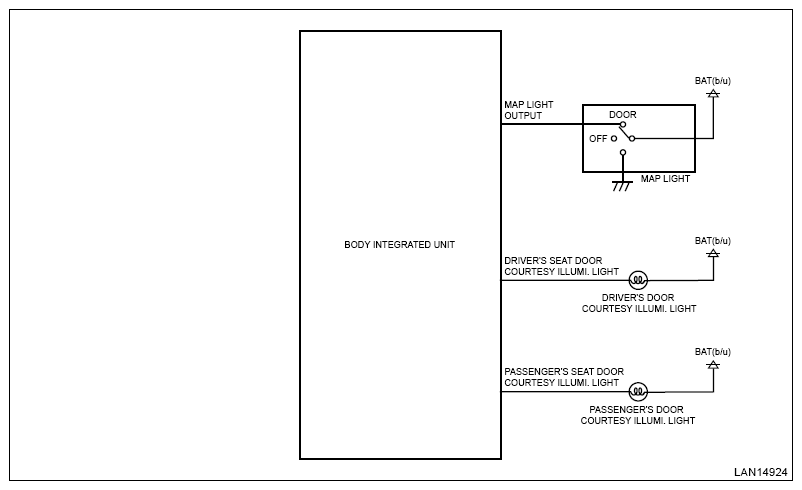

Interior light
Courtesy of SUBARU OF AMERICA, INC.

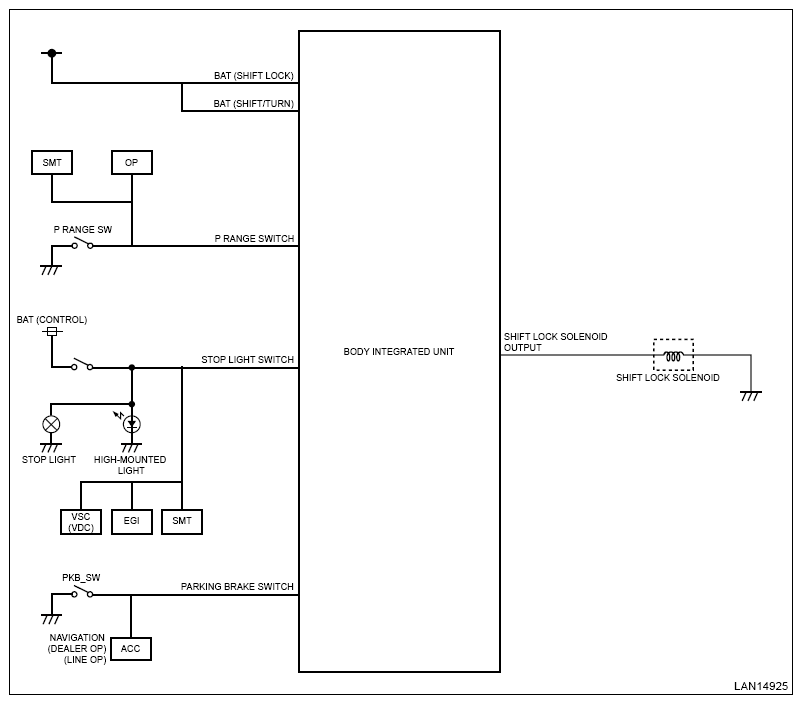

Shift lock (AT model only)
Courtesy of SUBARU OF AMERICA, INC.

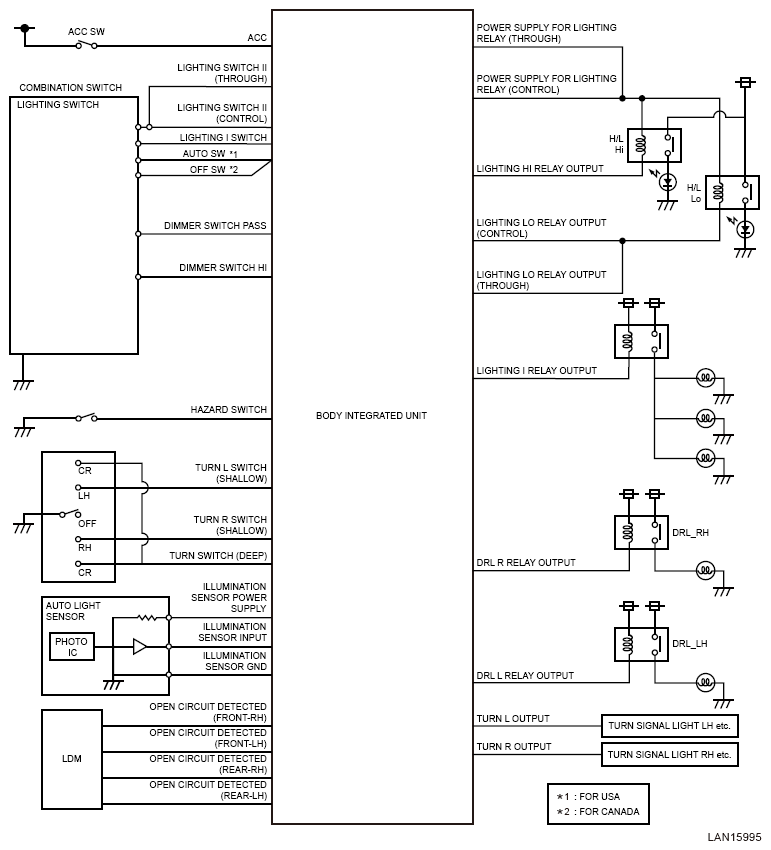

LIGHTING
Courtesy of SUBARU OF AMERICA, INC.

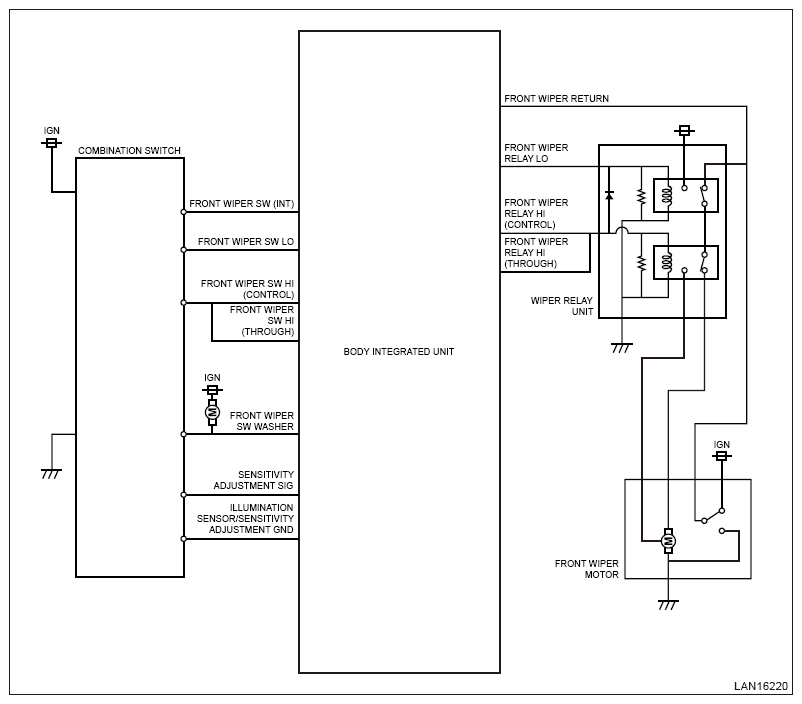

Wiper
Courtesy of SUBARU OF AMERICA, INC.

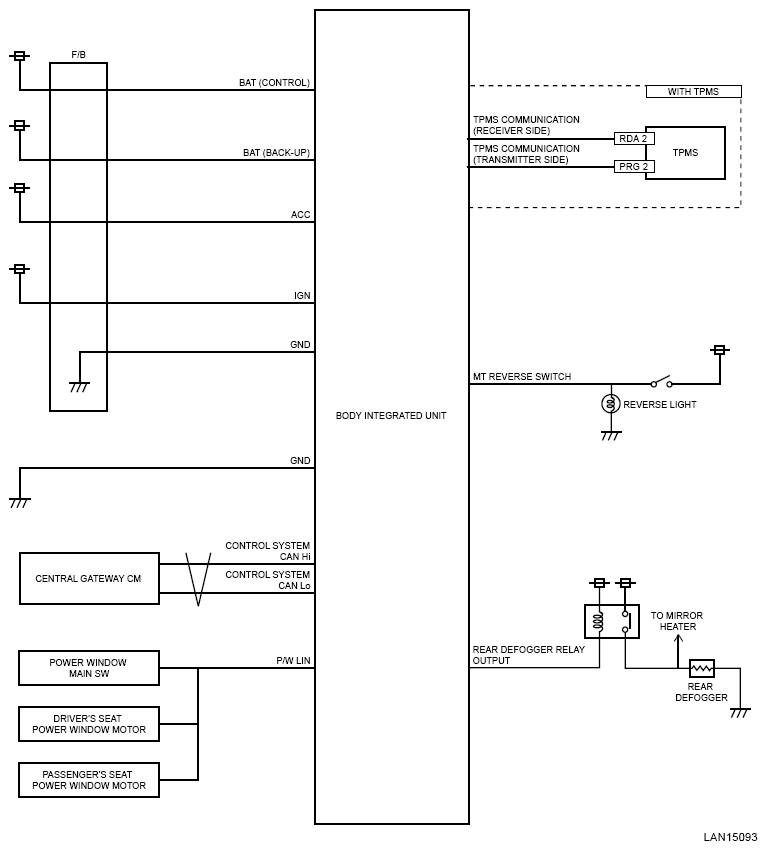

Power supply • communication • other
Courtesy of SUBARU OF AMERICA, INC.

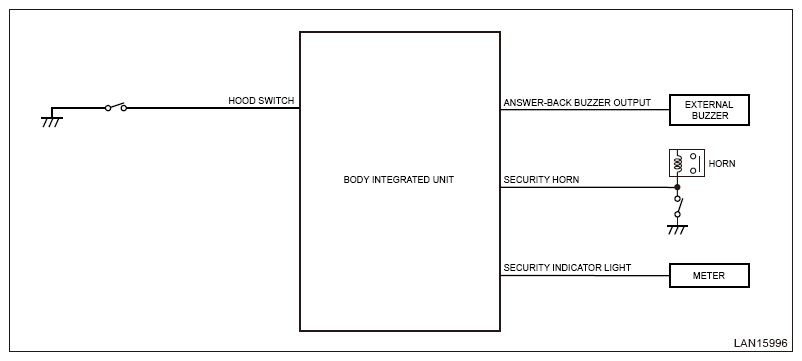

Security
Courtesy of SUBARU OF AMERICA, INC.

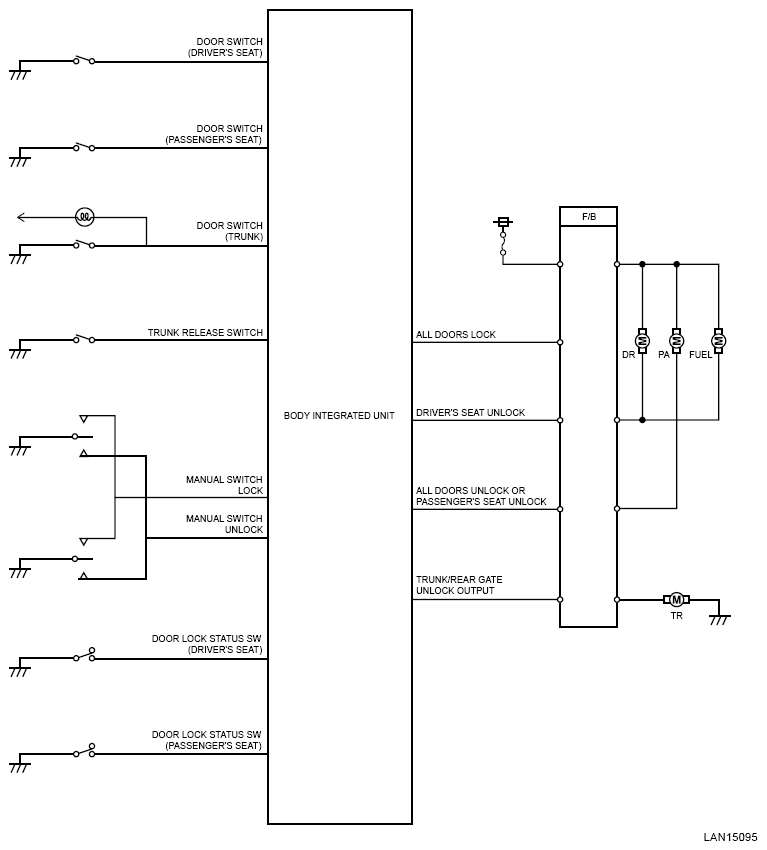

Door lock
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
