Electrical Specification

Courtesy of SUBARU OF AMERICA, INC.

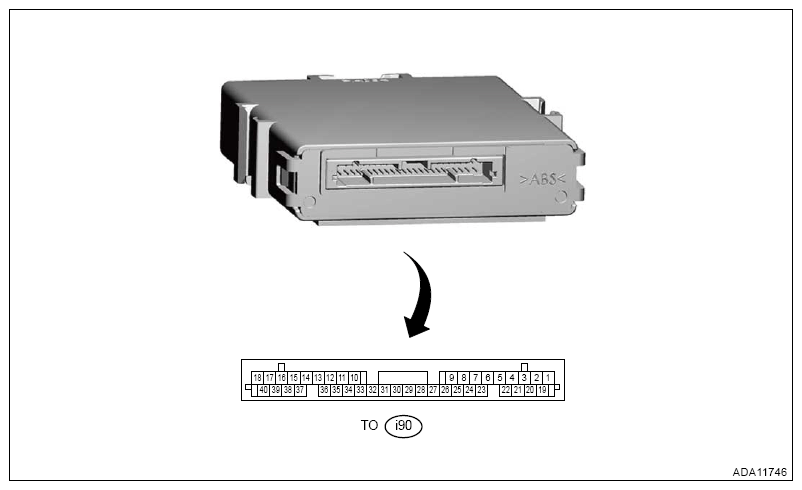

Terminal No.	Item	Measuring condition	Standard
(i90) No. 1 ←→ Chassis ground	Battery power supply	Always	9 - 16 V
(i90) No. 2	-	-	-
(i90) No. 3	-	-	-
(i90) No. 4	-	-	-
(i90) No. 5	-	-	-
(i90) No. 6	-	-	-
(i90) No. 7	-	-	-
(i90) No. 8	-	-	-
(i90) No. 9	-	-	-
(i90) No. 10	-	-	-
(i90) No. 11	-	-	-
(i90) No. 12	-	-	-
(i90) No. 13	-	-	-
(i90) No. 14	-	-	-
(i90) No. 15	-	-	-
(i90) No. 16	Power unit 1 CAN-H	Digital signal; cannot be measured	-
(i90) No. 17	Power unit 1 CAN-L	Digital signal; cannot be measured	-
(i90) No. 18 ←→ Chassis ground	GND	Always	Less than 1 Ω
(i90) No. 19 ←→ Chassis ground	Ignition power supply	Ignition switch OFF → ON	Less than 1 V → 9 - 16 V
(i90) No. 20	-	-	-
(i90) No. 21	-	-	-
(i90) No. 22	GND 2	Always	Less than 1 Ω
(i90) No. 23	-	-	-
(i90) No. 24	-	-	-
(i90) No. 25	EYE local 3 CAN-L	Digital signal; cannot be measured	-
(i90) No. 26	EYE local 3 CAN-H	Digital signal; cannot be measured	-
(i90) No. 27	-	-	-
(i90) No. 28	-	-	-
(i90) No. 29	-	-	-
(i90) No. 30	-	-	-
(i90) No. 31	-	-	-
(i90) No. 32	-	-	-
(i90) No. 33	-	-	-
(i90) No. 34	-	-	-
(i90) No. 35	-	-	-
(i90) No. 36	-	-	-
(i90) No. 37	-	-	-
(i90) No. 38	-	-	-
(i90) No. 39	-	-	-
(i90) No. 40	-	-	-
