Transfer Reduction Driven Gear: Removal

  1. Remove the transfer clutch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSFER CLUTCH>REMOVAL .

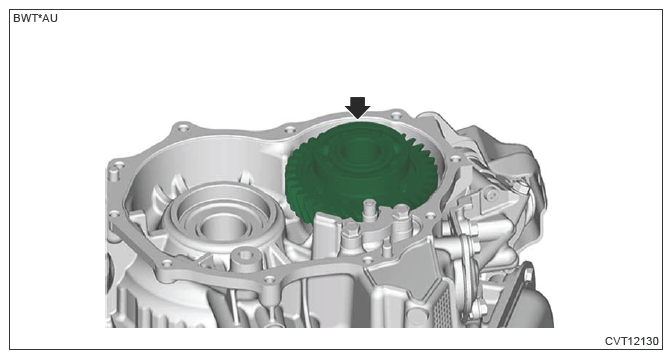

  2. Remove the transfer reduction driven gear.
    G13622122Courtesy of SUBARU OF AMERICA, INC.
