Front Reduction Drive Gear: Removal

  1. Remove the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE COVER>REMOVAL .
  2. Remove the front reduction drive gear and front reduction driven gear as a single unit.

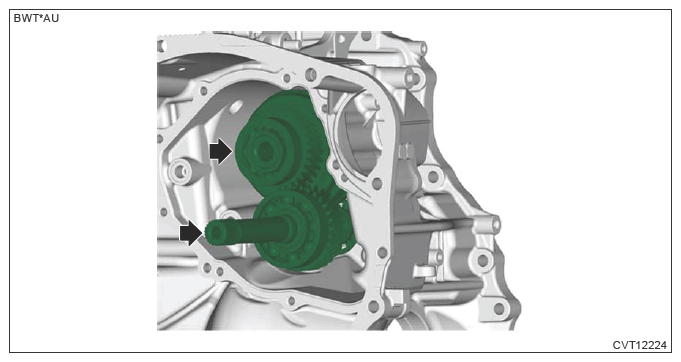

    G13622366Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front reduction driven gear shim (rear side).
    NOTE: The front reduction driven gear shim (front side) may remain on the front reduction driven gear.

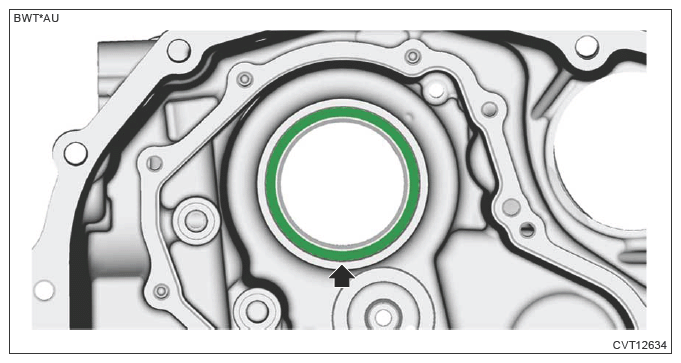

    G13622367Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the seal rings.

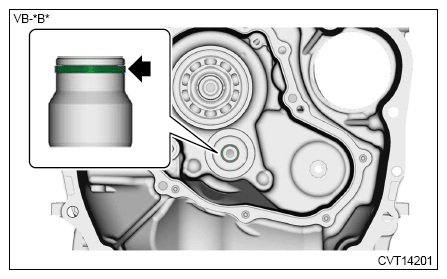

    G16389889Courtesy of SUBARU OF AMERICA, INC.
