Keyless Buzzer: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Lift up the vehicle.
  3. Remove the clips, and turn over the mud guard front.
    G16441299Courtesy of SUBARU OF AMERICA, INC.

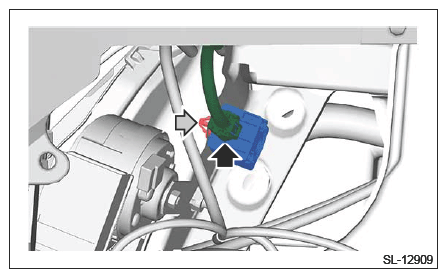

  4. Remove the keyless buzzer.
    1. Disconnect the connector.
    2. Remove the clip and detach the keyless buzzer.
G16445328Courtesy of SUBARU OF AMERICA, INC.
