Sensor•Inhibitor Switch

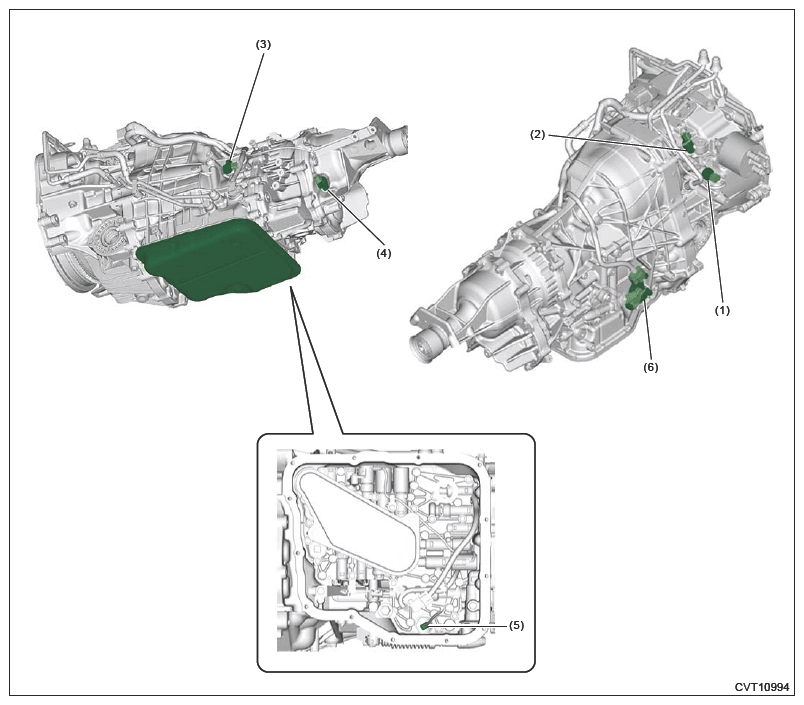

G16446545Courtesy of SUBARU OF AMERICA, INC.
(1) Secondary pressure sensor
(2) Primary speed sensor
(3) Secondary speed sensor
(4) Front wheel speed sensor
(5) Line pressure sensor
(6) Inhibitor switch
