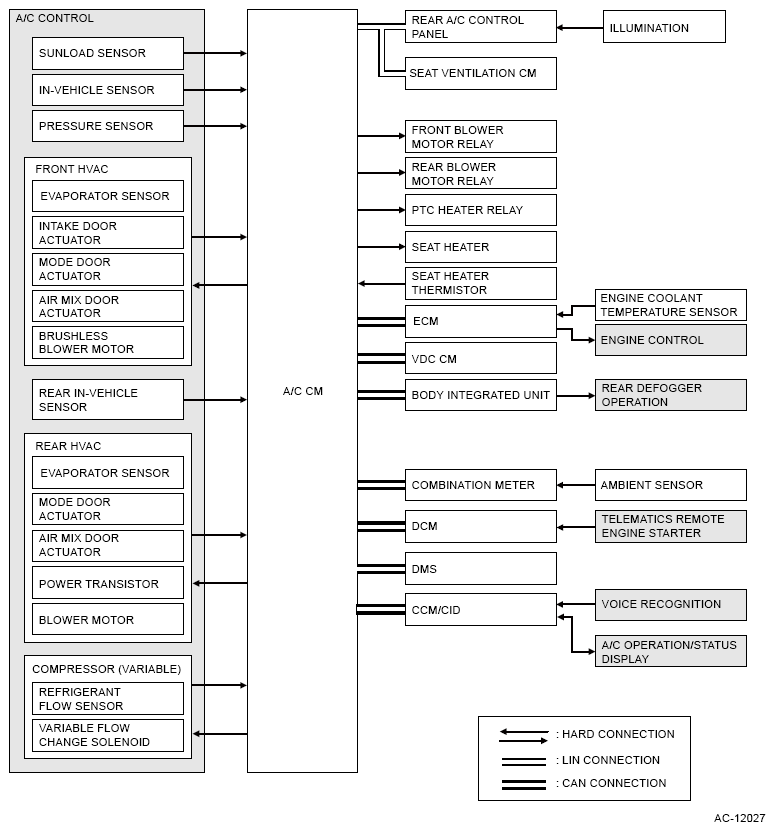

System Block Diagram
- A/C control & status display
Using the CAN communication, perform A/C control from vehicle information and each sensor value to actuate the A/C system device. Also, A/C status is output through CAN or LIN to display the A/C status on the center information display and the rear A/C control panel.
- Illumination
Adjust the rear A/C control panel lighting according to input (body integrated unit & combination meter).
- Engine control
Transmit the A/C status via CAN for engine control.
- Voice recognition
Change the A/C setting according to the voice input by incorporating with the cockpit control module and the center information display.
- Driver monitoring system
Change the A/C setting depending on drivers by incorporating with the driver monitoring system.
