DTC P0335: Crankshaft Position Sensor "A" Circuit: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

Engine stalls.
Failure of engine to start

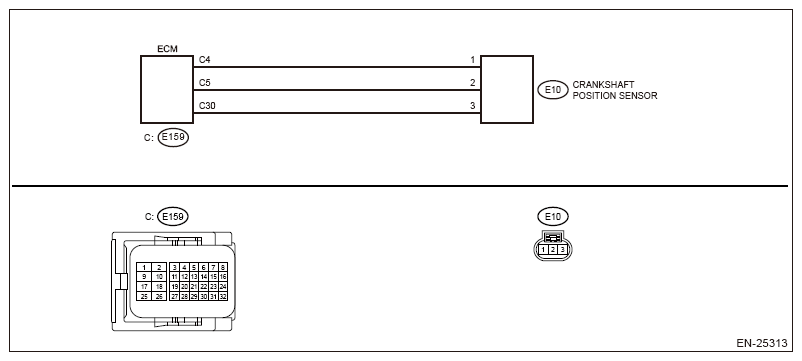

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

CHECK DTC .
1. Turn the ignition switch to ON.
2. Using the Subaru Select Monitor or a general scan tool, read the DTC of [Engine]. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
Is DTC P06B4 or P06B5 displayed? (Current code)

Yes: Check the appropriate DTC using the "Diagnostic Trouble Code (DTC)". Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>DIAGNOSTIC TROUBLE CODE (DTC)>LIST .

No: Go to 2.
CHECK INSTALLATION CONDITION OF CRANKSHAFT POSITION SENSOR .
1. Turn the ignition switch to OFF.
2. Check the installation condition of crankshaft position sensor.
Is the crankshaft position sensor installation bolt tightened securely?

Yes: Go to 3.

No: Tighten the crankshaft position sensor installation bolt securely. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>CRANKSHAFT POSITION SENSOR>INSTALLATION .
CHECK POWER SUPPLY OF CRANKSHAFT POSITION SENSOR .
1. Disconnect the connector from the crankshaft position sensor.
2. Turn the ignition switch to ON.
3. Measure the voltage between crankshaft position sensor connector and engine ground.
  Connector & terminal

  (E10) No. 3 (+) - Engine ground (-):
Is the voltage 4.5 V or more?

Yes: Go to 4.

No: Repair the following item.
- Open circuit in harness between ECM connector and crankshaft position sensor connector
- Poor contact of ECM connector
CHECK HARNESS BETWEEN ECM AND CRANKSHAFT POSITION SENSOR CONNECTOR (OPEN) .
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Measure the resistance of harness between ECM connector and crankshaft position sensor connector.
  Connector & terminal

  (E159) No. 4 - (E10) No. 1:

  (E159) No. 5 - (E10) No. 2:
Is the resistance less than 1 Ω?

Yes: Go to 5.

No: Repair the open circuit in the harness between the ECM connector and crankshaft position sensor connector.
CHECK HARNESS BETWEEN ECM AND CRANKSHAFT POSITION SENSOR CONNECTOR (SHORT TO GROUND) .
Measure the resistance between crankshaft position sensor connector and engine ground.

Connector & terminal

(E10) No. 1 - Engine ground:

Is the resistance 1 MΩ or more?

Yes: Go to 6.

No: Repair short circuit to ground in harness between ECM connector and crankshaft position sensor connector.
CHECK HARNESS BETWEEN ECM AND CRANKSHAFT POSITION SENSOR CONNECTOR (SHORT TO POWER SUPPLY) .
1. Turn the ignition switch to ON.
2. Measure the voltage between crankshaft position sensor connector and engine ground.
  Connector & terminal

  (E10) No. 1 (+) - Engine ground (-):
Is the voltage 5 V or more?

Yes: Repair the short circuit to power in the harness between ECM connector and crankshaft position sensor connector.

No: Go to 7.
CHECK CRANKSHAFT POSITION SENSOR .
1. Turn the ignition switch to OFF.
2. Connect all connectors.
3. Check waveform of crankshaft position sensor. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>CONTROL MODULE I/O SIGNAL>ELECTRICAL SPECIFICATION .
Is there any abnormality in waveform?

Yes: Replace the crankshaft position sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>CRANKSHAFT POSITION SENSOR .

No: Repair the following item.
- Poor contact of ECM connector
- Poor contact of crankshaft position sensor connector
