DTC P0332: Knock/Combustion Vibration Sensor 2 Circuit Low Bank 2: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

• Driving performance problem
• Knocking occurs

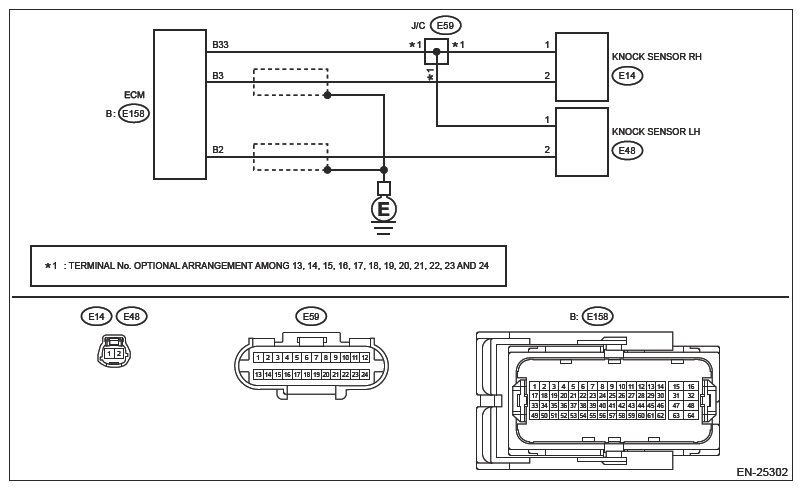

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK HARNESS BETWEEN ECM AND KNOCK SENSOR CONNECTOR  .
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from ECM.
   3. Measure the resistance between ECM connectors.

      Connector & terminal

      (E158) No. 33 - (E158) No. 2:

   Is the resistance less than 500 kΩ?

   Yes:  Go to  2.

   No:  Go to  3.

2. CHECK KNOCK SENSOR  .
   1. Disconnect the connector from the knock sensor.
   2. Measure the resistance between knock sensor connectors.

      Terminals

      No. 1 - No. 2:

   Is the resistance less than 500 kΩ?

   Yes:  Replace the knock sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>KNOCK SENSOR .

   No:  Repair the short circuit to ground in harness between ECM connector and knock sensor connector.

   NOTE: The harness between both connectors are shielded. Remove the shield and repair the short circuit of harness.
3. CHECK INPUT SIGNAL OF ECM  .
   1. Connect the ECM.
   2. Turn the ignition switch to ON.
   3. Measure the voltage between ECM connector and engine ground.

      Connector & terminal

      (E158) No. 2 (+) - Engine ground (-):

   Is the voltage 2 V or more?

   Yes:  Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

   NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.

   No:  Repair the short circuit to ground in harness between ECM connector and knock sensor connector.

   NOTE: The harness between both connectors are shielded. Remove the shield and repair the short circuit of harness.
