Component Description

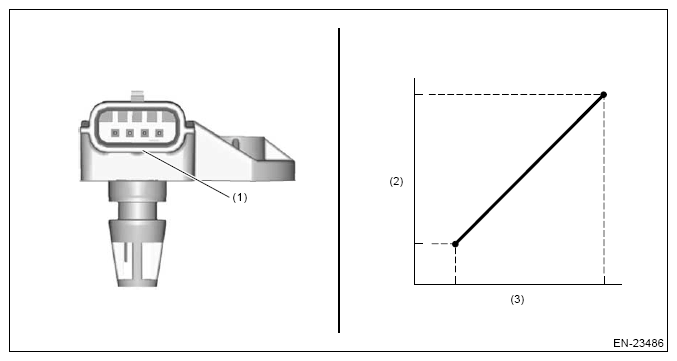

G16390374Courtesy of SUBARU OF AMERICA, INC.
(1) Manifold absolute pressure sensor
(2) Voltage (V)
(3) Absolute pressure (kPa)
