System Block Diagram

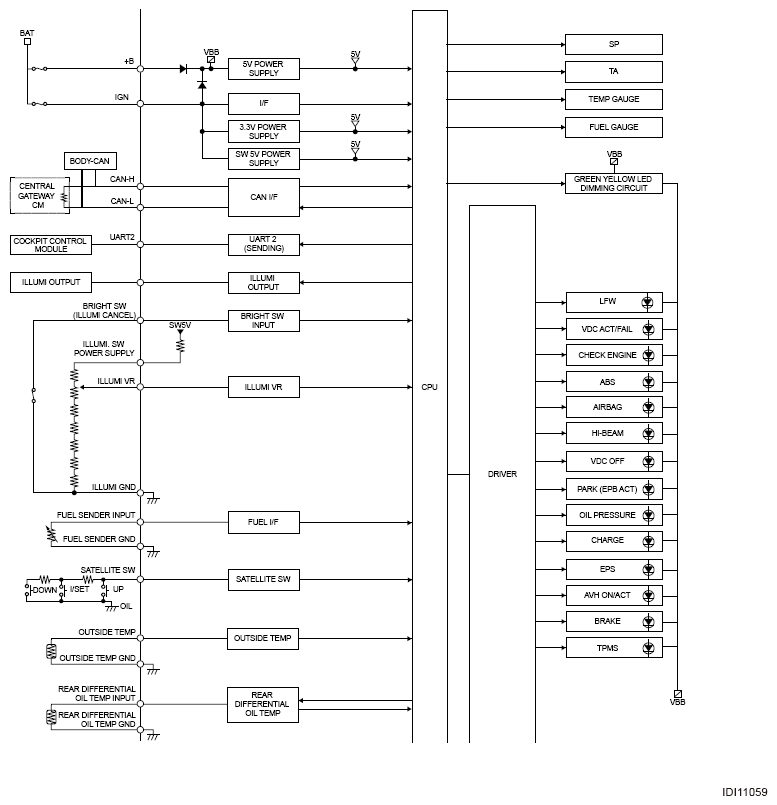

G16447371

Courtesy of SUBARU OF AMERICA, INC.

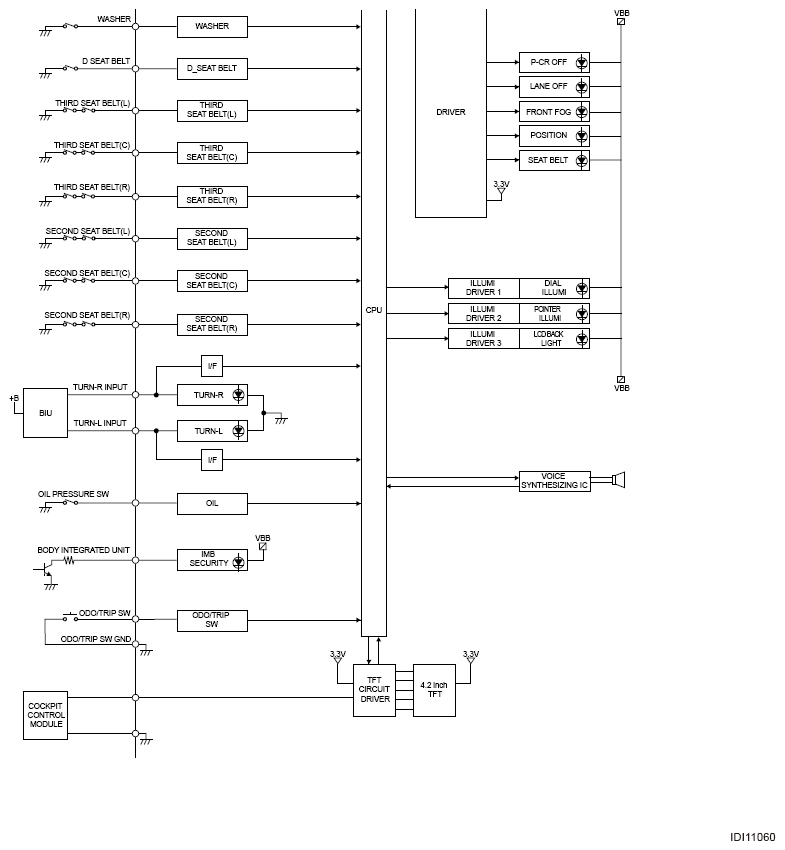

G16447372

Courtesy of SUBARU OF AMERICA, INC.
