Driver Monitoring Unit: Removal

CAUTION: When replacing the driver monitoring unit, perform the variant work. Ref. to DRIVER MONITOR (DIAGNOSTICS)>WORK SUPPORT>OPERATION .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the grille speaker assembly CTR. Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL .
  4. Remove the driver monitoring unit.
    CAUTION: Be careful not to damage the driver monitoring unit.

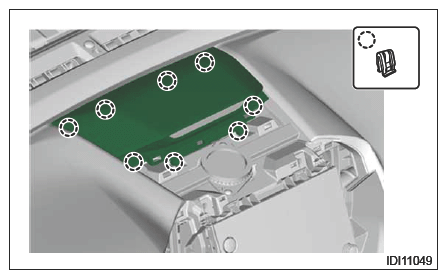

    1. Release the claws and pull out the driver monitoring unit assembly.
    2. Disconnect the connector and remove the driver monitoring unit assembly.
      G16441678Courtesy of SUBARU OF AMERICA, INC.

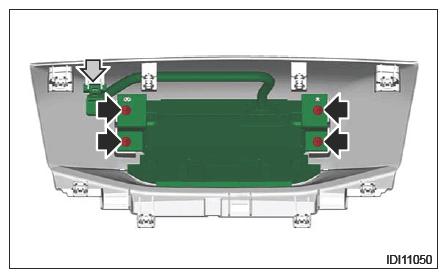

    3. Remove the screws and remove the driver monitoring unit from the panel center UPR.
G16441679Courtesy of SUBARU OF AMERICA, INC.
