Brake Control System (Diagnostics): Electrical Component Location: Location

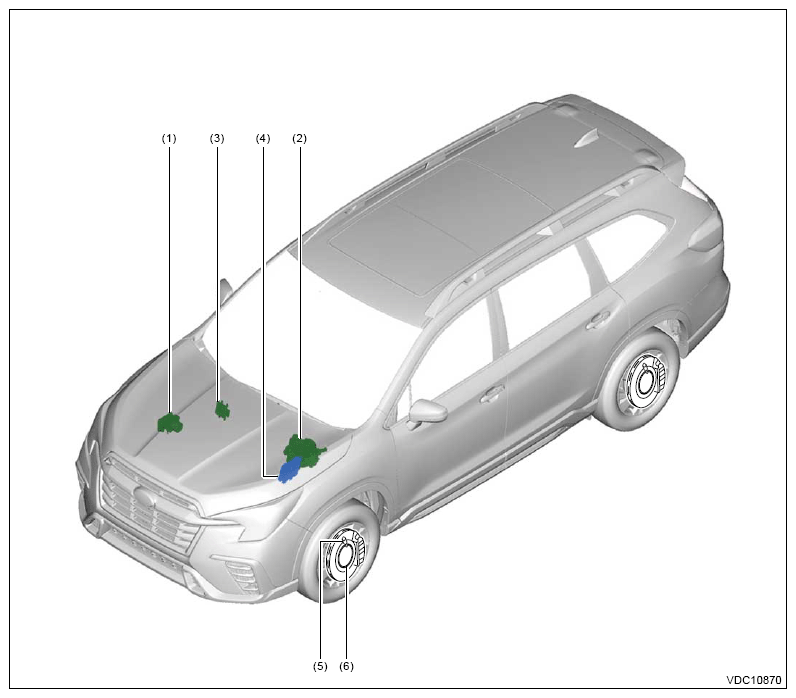

| (1) | VDCCM & H/U |
| (2) | Electric brake booster control module (master cylinder) |
| (3) | TCM |
| (4) | ECM |
| (5) | ABS wheel speed sensor |
| (6) | Magnetic encoder |

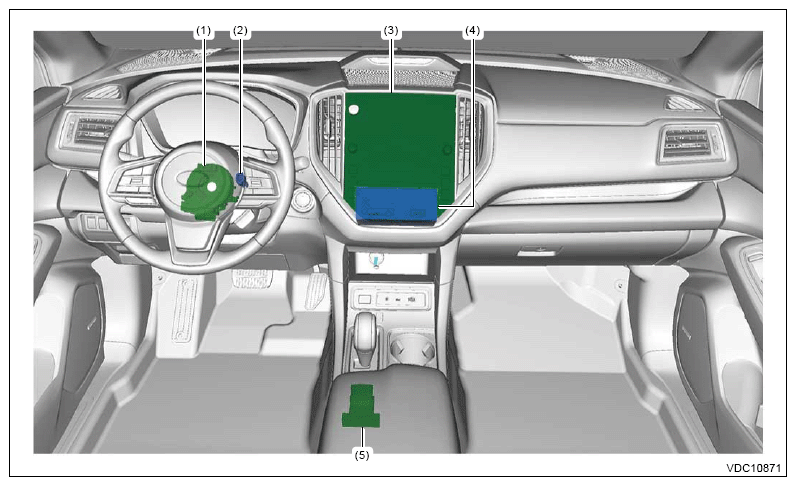

| (1) | Steering angle sensor |
| (2) | Stop light and brake switch |
| (3) | VDC OFF switch and AVH switch (center information display) |
| (4) | Cockpit control module |
| (5) | Electronic parking brake switch |
| (1) | Stop light relay |
