Rain Sensor: Removal
CAUTION:
- Be careful not to damage the glass windshield and bracket.
- Replace the glass windshield if the bracket is damaged.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the cover assembly stereo camera. Ref. to EYESIGHT>STEREO CAMERA>REMOVAL .
- Remove the cover assembly wide angle mono camera. Ref. to EYESIGHT>WIDE ANGLE MONO CAMERA>REMOVAL .

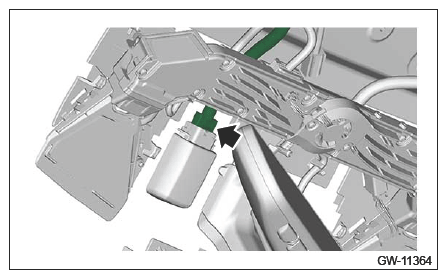

- Disconnect the connector.
- Remove the sensor assembly rain.
Preparation tool:
A plate with the width of 10 mm (0.39 in) or more, thickness of 1 - 1.5 mm (0.04 - 0.06 in) or equivalent

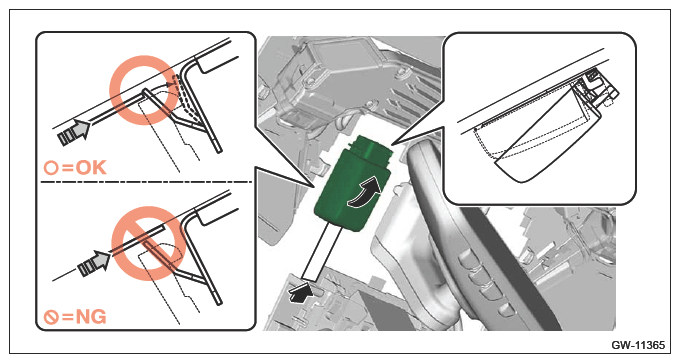

- Insert the plate from the slit of the sensor assembly rain to release the lock of the bracket.
- Pull out the sensor assembly rain toward you, and remove it by sliding upwards.
