Ascent Base
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Seat System - Seats
>>
Power Seat System
>>
Inspection
>>
Note
>>

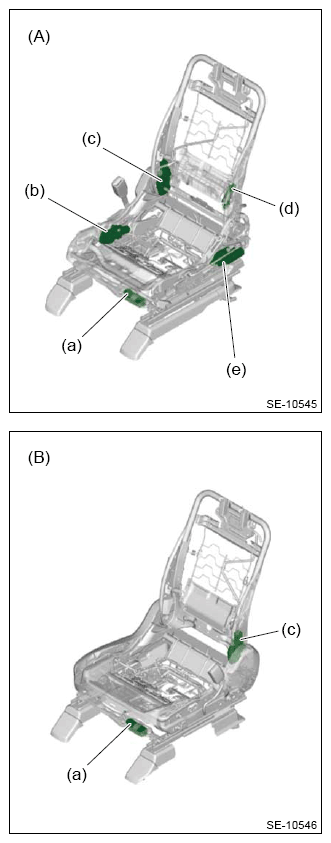

Motor Layout
Motor Layout
Courtesy of SUBARU OF AMERICA, INC.
(A)
Driver's seat
(B)
Passenger's seat
(a)
Slide motor
(c)
Reclining motor
(b)
Tilt motor
(d)
Lumbar motor (12-way type)
(e)
Lifter motor
Courtesy of SUBARU OF AMERICA, INC.
