Front Seat
- Driver's seat (manual type)
Courtesy of SUBARU OF AMERICA, INC.

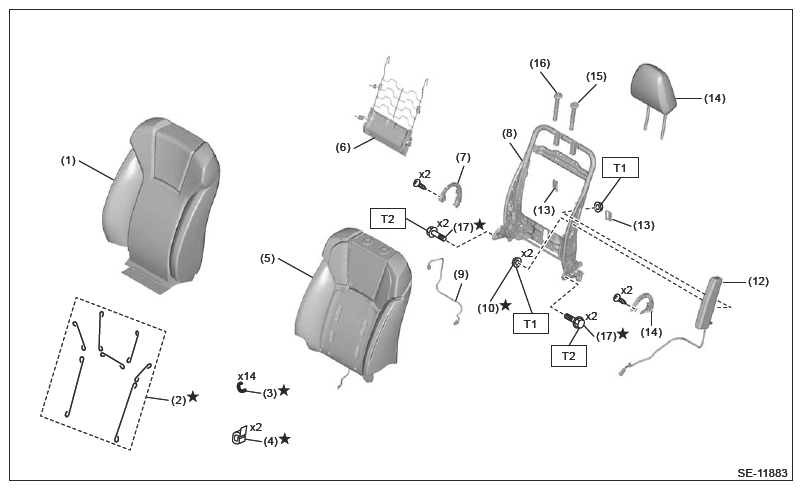

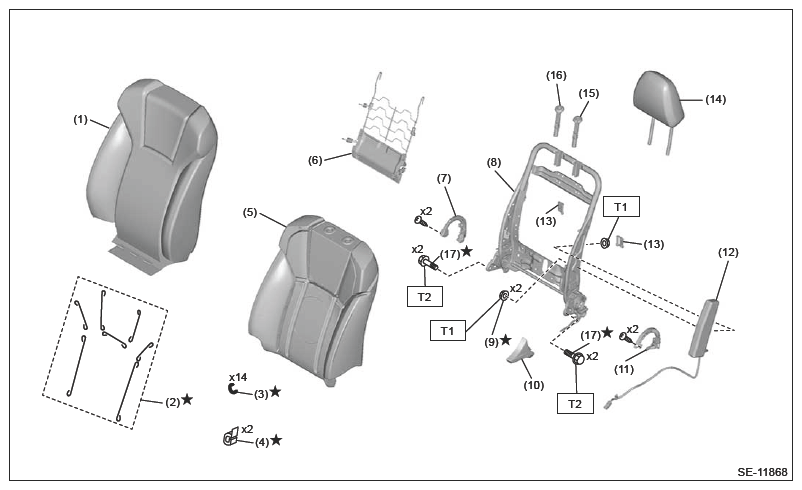

(1) Cover front seat backrest (2) Wire set front seat backrest (3) Hog ring (4) Clip suspender (5) Seat pad ASSY backrest (6) Flat mat & hook spring ASSY (7) Hinge base cover inside (8) Seat frame ASSY backrest (9) Nut (10) Knob hinge reclining (11) Hinge base cover outside (12) Side airbag module (13) Protector spring (14) Headrest ASSY (15) Bushing headrest lock (16) Bushing headrest free (17) Bolt Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 2: Front Seat Components Location With Torque Specification - Driver'S Seat (Manual Type; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.
(1) Cover front seat cushion (2) Wire set front seat cushion (3) Seat pad ASSY cushion (4) Hog ring (5) Cover bolt front inside (6) Cover rail inside (7) Cover bolt front outside (8) Lever towel bar (9) Cover rail outside (10) Slide rail ASSY inside (11) Slide rail ASSY outside (12) Seat frame ASSY cushion (13) Cover hinge outside (14) Knob lifter (15) Cover bolt rear outside (16) Cover riser BRKT INN (17) Cover INN cushion outside (18) Cover bolt rear inside (19) Cover riser link (20) Cover INN cushion inside (21) Panel front wire (22) Cover hinge inside (23) Spring wave washer (24) Seat belt INN front(1) (25) Harness ASSY cushion (26) TORX® bolt (27) TORX® bolt (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 17.6 (1.8, 13.0)
T2: 38 (3.9, 28.0)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- Driver's seat (power type (8-way model))Fig 3: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 8-Way Model; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

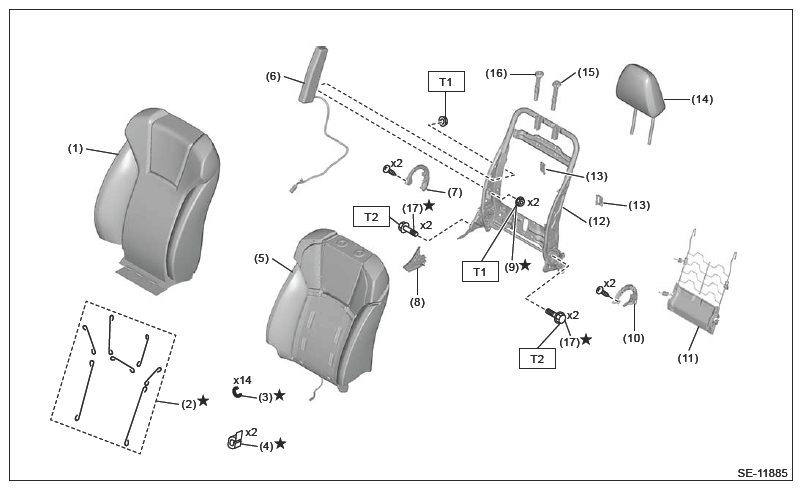

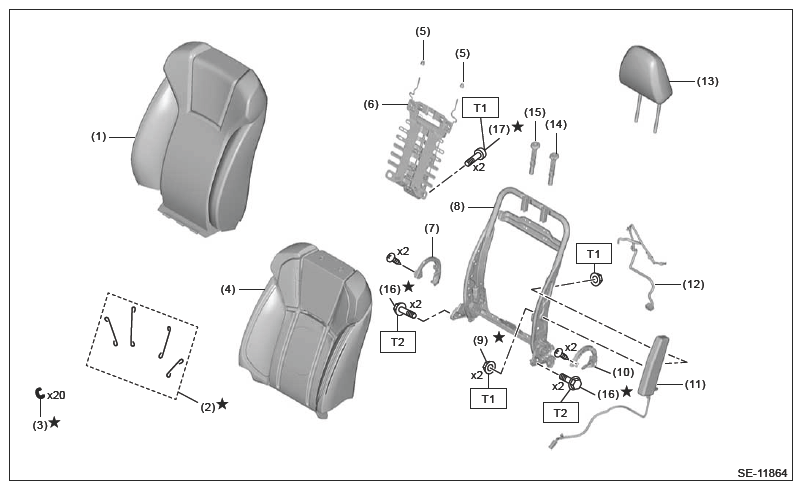

(1) Cover front seat backrest (2) Wire set front seat backrest(1) (3) Hog ring (4) Clip suspender (5) Seat pad ASSY backrest (6) Flat mat & hook spring ASSY (7) Hinge base cover inside (8) Seat frame ASSY backrest (9) Harness ASSY backrest (10) Nut (11) Hinge base cover outside (12) Side airbag module (13) Protector spring (14) Headrest ASSY (15) Bushing headrest lock (16) Bushing headrest free (17) Bolt (1) Shapes and specifications vary depending on the grade. Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 4: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 8-Way Model; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.

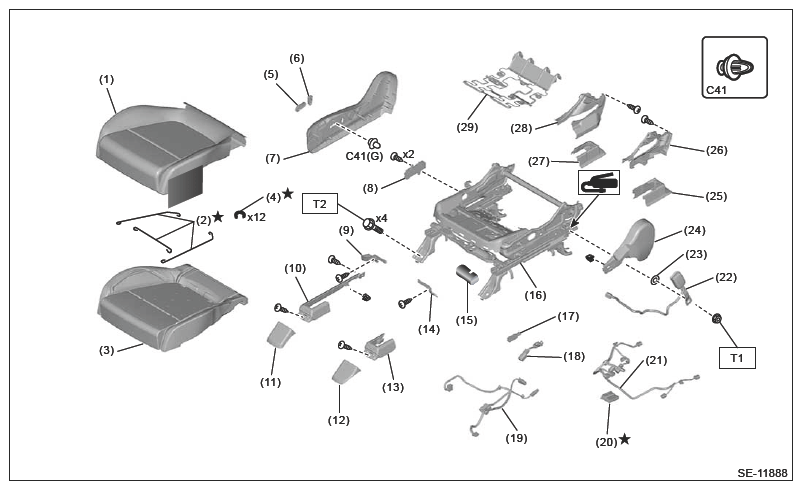

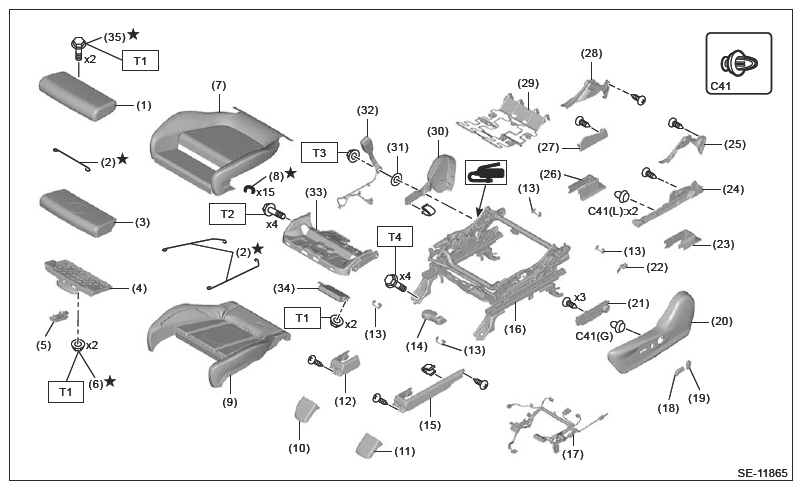

(1) Cover front seat cushion (2) Wire set front seat cushion (3) Seat pad ASSY cushion (4) Hog ring (5) Cover bolt front inside (6) Cover bolt front outside (7) Front rail cover inside (8) Front rail cover outside (9) Cover end cap (10) Gearbox cover (11) Seat frame ASSY cushion (12) Harness ASSY cushion (13) Knob power seat (14) Knob power seat (15) Cover hinge outside (16) Switch ASSY power seat (17) Cover bracket (18) Cover bolt rear outside (19) Cover riser BRKT INN (20) Cover INN cushion outside (21) Cover bolt rear inside (22) Cover riser link (23) Cover INN cushion inside (24) Panel front wire (25) Cover hinge inside (26) Spring wave washer (27) Seat belt INN front(1) (28) Panel ASSY cushion (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 15 (1.5, 11.1)
T2: 38 (3.9, 28.0)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- Driver's seat (power type (12-way model without ventilation))Fig 5: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 12-Way Model Without Ventilation; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

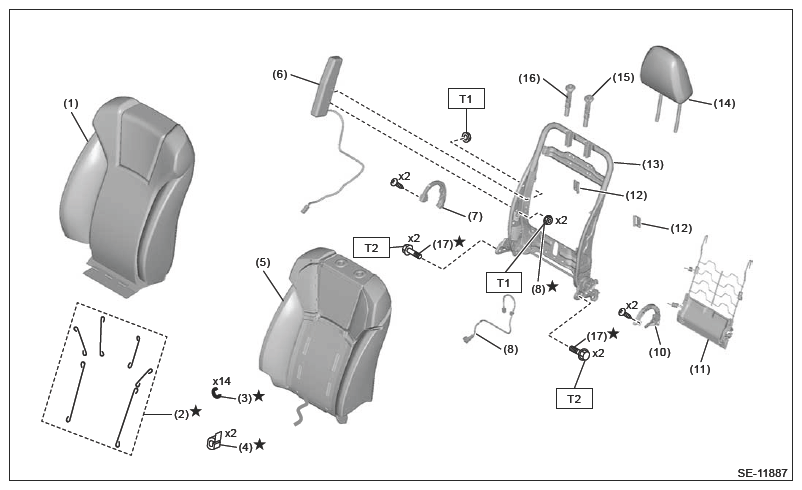

(1) Cover front seat backrest (2) Wire set front seat backrest (3) Hog ring (4) Seat pad ASSY backrest (5) Bushing lumbar (6) Flat mat & hook spring ASSY (7) Hinge base cover inside (8) Seat frame ASSY backrest (9) Nut (10) Hinge base cover outside (11) Side airbag module (12) Harness ASSY backrest (13) Headrest ASSY (14) Bushing headrest lock (15) Bushing headrest free (16) Bolt (17) TORX® bolt Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 6: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 12-Way Model Without Ventilation; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.

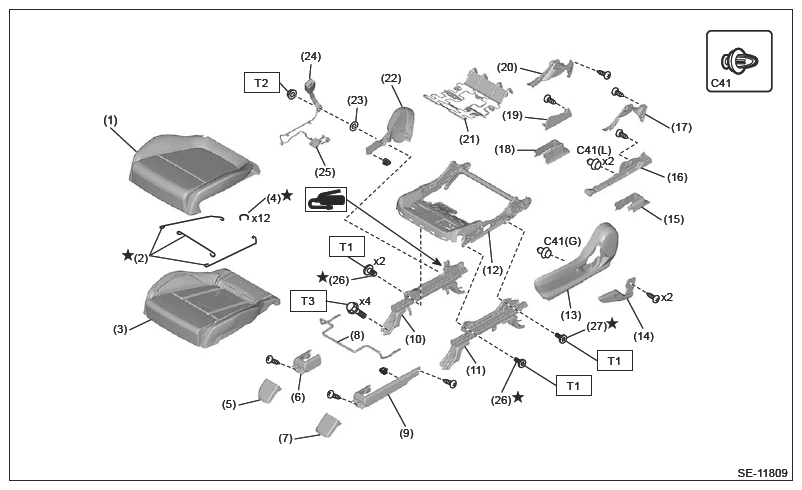

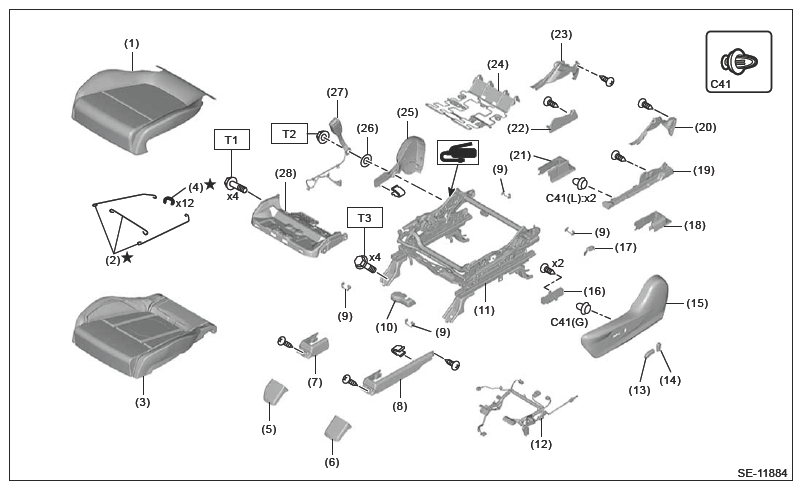

(1) Cover adjuster unit (2) Wire set front seat cushion (3) Pad adjuster unit (4) Cushion adjuster unit (5) Holder connector (6) Nut (7) Cover front seat cushion (8) Hog ring (9) Seat pad ASSY cushion (10) Cover bolt front inside (11) Cover bolt front outside (12) Cover rail inside (13) Cover end cap (14) Gearbox cover (15) Cover rail outside (16) Seat frame ASSY cushion (17) Harness ASSY cushion (18) Knob power seat (19) Knob power seat (20) Cover hinge outside (21) Switch ASSY power seat (22) Cover bracket (23) Cover bolt rear outside (24) Cover riser BRKT INN (25) Cover INN cushion outside (26) Cover bolt rear inside (27) Cover riser link (28) Cover INN cushion inside (29) Panel front wire (30) Cover hinge inside (31) Spring wave washer (32) Seat belt INN front(1) (33) Panel ASSY cushion (34) ECM seat memory (35) Bolt (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 15 (1.5, 11.1)
T3: 38 (3.9, 28.0)
T4: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- Driver's seat (power type (12-way model with ventilation))Fig 7: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 12-Way Model With Ventilation; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

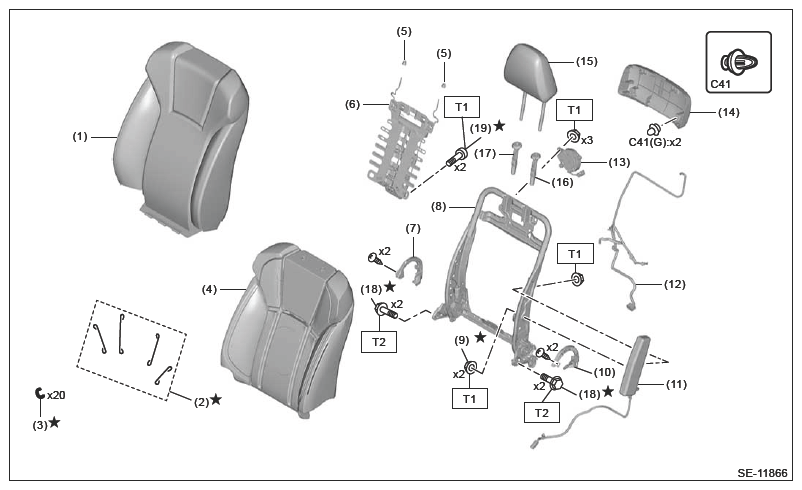

(1) Cover front seat backrest (2) Wire set front seat backrest (3) Hog ring (4) Seat pad ASSY backrest (5) Bushing lumbar (6) Flat mat & hook spring ASSY (7) Hinge base cover inside (8) Seat frame ASSY backrest (9) Nut (10) Hinge base cover outside (11) Side airbag module (12) Harness ASSY backrest (13) Power unit blower backrest (14) Cover backrest blower (15) Headrest ASSY (16) Bushing headrest lock (17) Bushing headrest free (18) Bolt (19) TORX® bolt Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 8: Front Seat Components Location With Torque Specification - Driver'S Seat (Power Type - 12-Way Model With Ventilation; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.

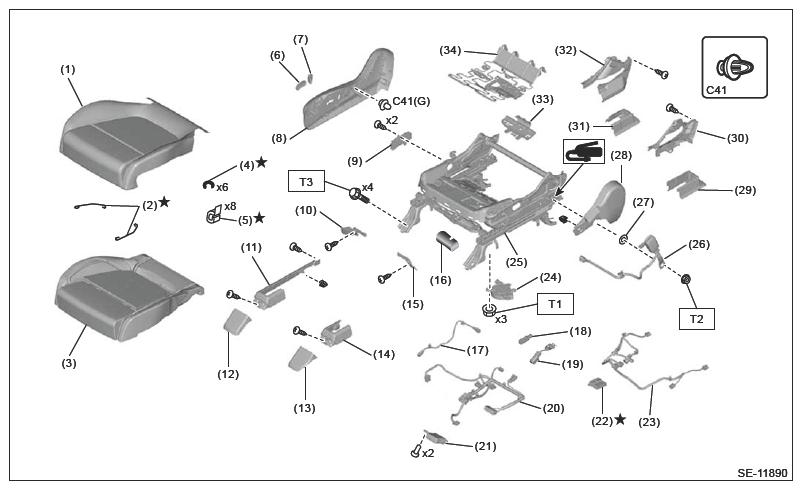

(1) Cover adjuster unit (2) Wire set front seat cushion (3) Pad ASSY adjuster unit (4) Cushion adjuster unit (5) Holder connector (6) Nut (7) Cover front seat cushion (8) Hog ring (9) Clip suspender (10) Seat pad ASSY cushion (11) Cover bolt front outside (12) Cover rail inside (13) Cover bolt front outside (14) Cover end cap (15) Gear box cover (16) Cover rail outside (17) Seat frame ASSY cushion (18) Power unit blower cushion (19) Harness ASSY cushion (20) Knob power seat (21) Knob power seat (22) Cover hinge outside (23) Switch ASSY power seat (24) Cover bracket (25) Cover bolt rear outside (26) Cover riser BRKT INN (27) Cover INN cushion outside (28) Cover bolt rear inside (29) Cover riser link (30) Cover INN cushion inside (31) Panel front wire (32) Light pocket (33) Holder foot light (34) Cover hinge inside (35) Spring wave washer (36) Seat belt INN front(1) (37) Panel ASSY cushion (38) ECM seat memory (39) Bolt (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 15 (1.5, 11.1)
T3: 38 (3.9, 28.0)
T4: Ref. to SEATS>FRONT SEAT>INSTALLATION .
- Passenger's seat (manual type)Fig 9: Front Seat Components Location With Torque Specification - Passenger'S Seat (Manual Type; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
(1) Cover front seat backrest (2) Wire set front seat backrest(1) (3) Hog ring (4) Clip suspender (5) Seat pad ASSY backrest (6) Side airbag module (7) Hinge base cover outside (8) Knob hinge reclining (9) Nut (10) Hinge base cover inside (11) Flat mat & hook spring ASSY (12) Seat frame ASSY backrest (13) Protector spring (14) Headrest ASSY (15) Bushing headrest lock (16) Bushing headrest free (17) Bolt (1) Shapes and specifications vary depending on the grade. Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 10: Front Seat Components Location With Torque Specification - Passenger'S Seat (Manual Type; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.

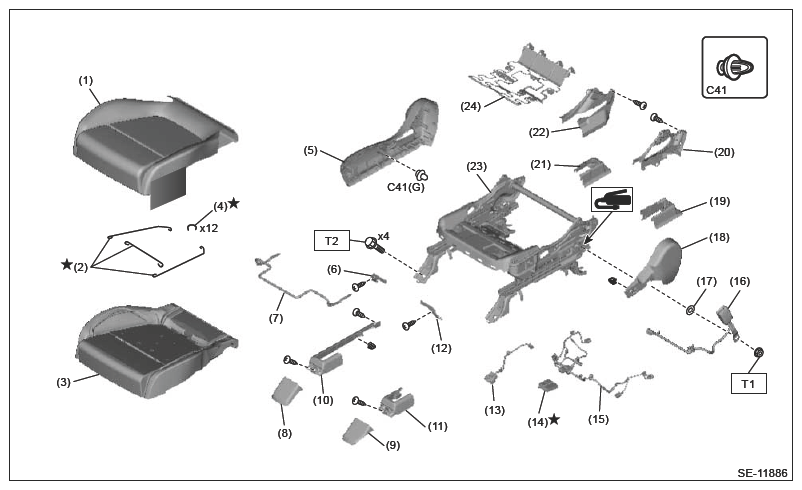

(1) Cover front seat cushion (2) Wire set front seat cushion (3) Seat pad ASSY cushion (4) Hog ring (5) Cover hinge outside (6) Cover edge cushion outside (7) Lever towel bar (8) Cover bolt front outside (9) Cover bolt front inside (10) Cover rail outside (11) Cover rail inside (12) Cover edge cushion inside (13) Harness ASSY cushion (14) Control module occupant detection system (15) Harness ASSY occupant detection system (16) Seat belt INN front(1) (17) Spring wave washer (18) Cover hinge inside (19) Cover bolt rear inside (20) Cover INN cushion inside (21) Cover bolt rear outside (22) Cover INN cushion outside (23) Seat frame ASSY cushion (24) Panel front wire (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 38 (3.9, 28.0)
T2: Ref. to SEATS>FRONT SEAT>INSTALLATION .
NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component. - Passenger's seat (power type (4-way model without ventilation))Fig 11: Front Seat Components Location With Torque Specification - Passenger'S Seat (Power Type - 4-Way Model Without Ventilation; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

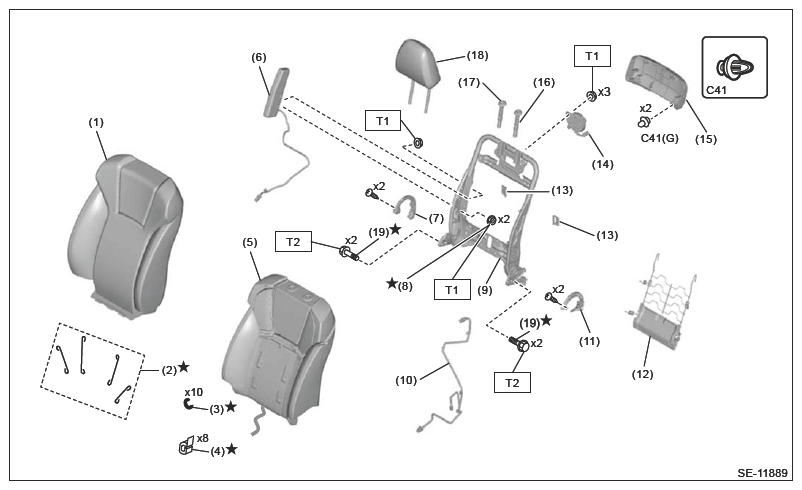

(1) Cover front seat backrest (2) Wire set front seat backrest (3) Hog ring (4) Clip suspender (5) Seat pad ASSY backrest (6) Side airbag module (7) Hinge base cover outside (8) Nut (9) Harness ASSY backrest (10) Hinge base cover inside (11) Flat mat & hook spring ASSY (12) Protector spring (13) Seat frame ASSY backrest (14) Headrest ASSY (15) Bushing headrest lock (16) Bushing headrest free (17) Bolt Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 12: Front Seat Components Location With Torque Specification - Passenger'S Seat (Power Type - 4-Way Model Without Ventilation; 2 Of 2)Courtesy of SUBARU OF AMERICA, INC.

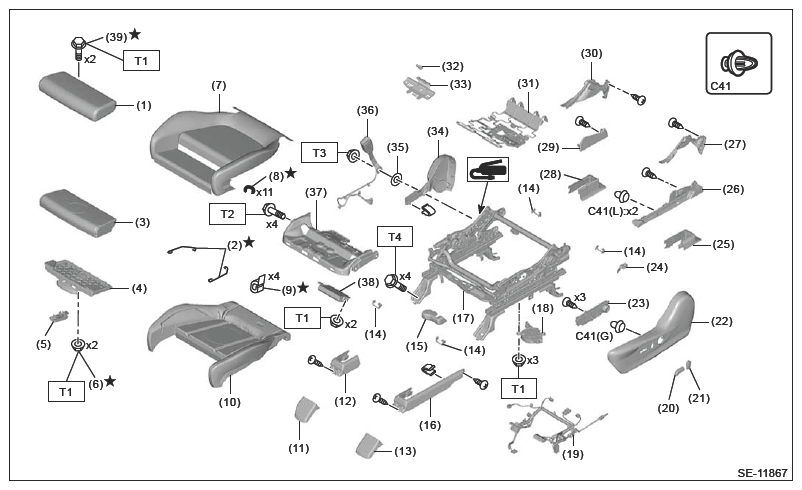

(1) Cover front seat cushion (2) Wire set front seat cushion (3) Seat pad ASSY cushion (4) Hog ring (5) Knob power seat (6) Knob power seat (7) Cover hinge outside (8) Switch ASSY power seat (9) Cover edge cushion outside (10) Cover rail outside (11) Cover bolt front outside (12) Cover bolt front inside (13) Cover rail inside (14) Cover edge cushion inside (15) Gear box cover (16) Seat frame ASSY cushion (17) Seat position sensor (18) Harness ASSY seat position sensor (19) Harness ASSY cushion (20) Control module occupant detection system (21) Harness ASSY occupant detection system (22) Seat belt INN front(1) (23) Spring wave washer (24) Cover hinge inside (25) Cover bolt rear inside (26) Cover INN cushion inside (27) Cover bolt rear outside (28) Cover INN cushion outside (29) Panel front wire (1) Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN . Tightening torque: N.m (kgf-m, ft-lb)
T1: 38 (3.9, 28.0)
T2: Ref. to SEATS>FRONT SEAT>INSTALLATION .
NOTE: Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component. - Passenger's seat (power type (4-way model with ventilation))
Fig 13: Front Seat Components Location With Torque Specification - Passenger'S Seat (Power Type - 4-Way Model With Ventilation; 1 Of 2)
| (1) | Cover front seat backrest |
| (2) | Wire set front seat backrest |
| (3) | Hog ring |
| (4) | Clip suspender |
| (5) | Seat pad ASSY backrest |
| (6) | Side airbag module |
| (7) | Hinge base cover outside |
| (8) | Nut |
| (9) | Seat frame ASSY backrest |
| (10) | Harness ASSY backrest |
| (11) | Hinge base cover inside |
| (12) | Flat mat & hook spring ASSY |
| (13) | Protector spring |
| (14) | Power unit blower backrest |
| (15) | Cover backrest blower |
| (16) | Bushing headrest lock |
| (17) | Bushing headrest free |
| (18) | Headrest ASSY |
| (19) | Bolt |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY .
Fig 14: Front Seat Components Location With Torque Specification - Passenger'S Seat (Power Type - 4-Way Model With Ventilation; 2 Of 2)
| (1) | Cover front seat cushion | ||
| (2) | Wire set front seat cushion | ||
| (3) | Seat pad ASSY cushion | ||
| (4) | Hog ring | ||
| (5) | Clip suspender | ||
| (6) | Knob power seat | ||
| (7) | Knob power seat | ||
| (8) | Cover hinge outside | ||
| (9) | Switch ASSY power seat | ||
| (10) | Cover edge cushion outside | ||
| (11) | Cover rail outside | ||
| (12) | Cover bolt front outside | ||
| (13) | Cover bolt front inside | ||
| (14) | Cover rail inside | ||
| (15) | Cover edge cushion inside | ||
| (16) | Gear box cover | ||
| (17) | Harness ASSY foot light | ||
| (18) | Seat position sensor | ||
| (19) | Harness ASSY seat position sensor | ||
| (20) | Seat ventilation control module | ||
| (21) | Harness ASSY cushion | ||
| (22) | Control module occupant detection system | ||
| (23) | Harness ASSY occupant detection system | ||
| (24) | Power unit blower cushion | ||
| (25) | Seat frame ASSY cushion | ||
| (26) | Seat belt INN front(1) | ||
| (27) | Spring wave washer | ||
| (28) | Cover hinge inside | ||
| (29) | Cover bolt rear inside | ||
| (30) | Cover INN cushion inside | ||
| (31) | Cover bolt rear outside | ||
| (32) | Cover INN cushion outside | ||
| (33) | Holder foot light | ||
| (34) | Panel front wire | ||
|
|||
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6 (0.6, 4.4)
T2: 38 (3.9, 28)
T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .
NOTE:
Do not disassemble the load sensor, cushion frame assembly and slide rail assembly, which are integrated in an assembly component.
