Power Seat Memory System (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

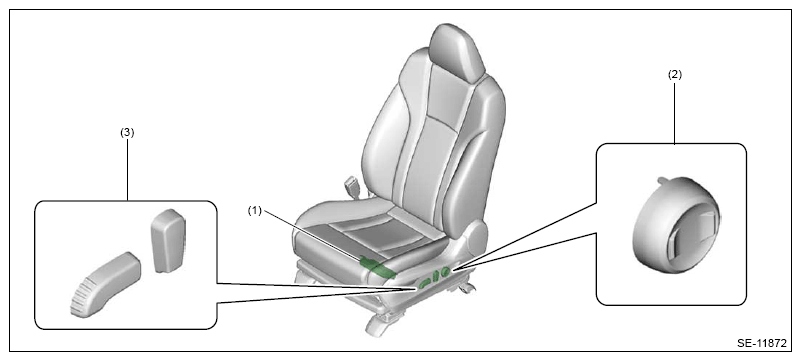

(1)	Seat position memory control module
(2)	Lumbar switch
(3)	Power seat switch

Courtesy of SUBARU OF AMERICA, INC.

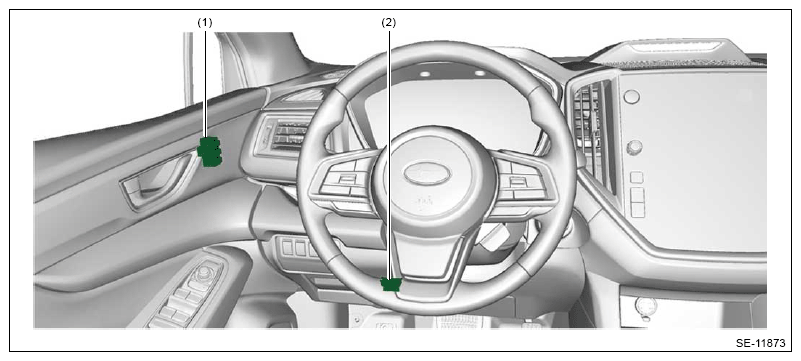

(1)	Seat memory switch
(2)	Data link connector

Courtesy of SUBARU OF AMERICA, INC.

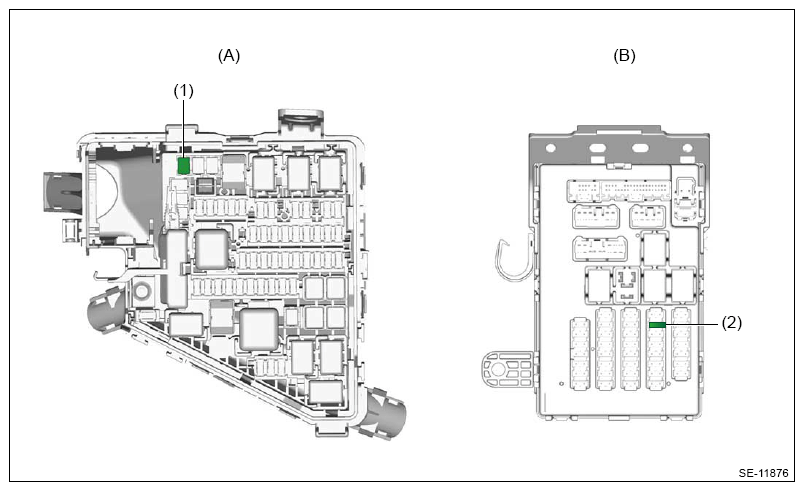

(A)	M/B
(B)	F/B
(1)	SBF-5 fuse
(2)	F/B fuse No. 8
