Security System

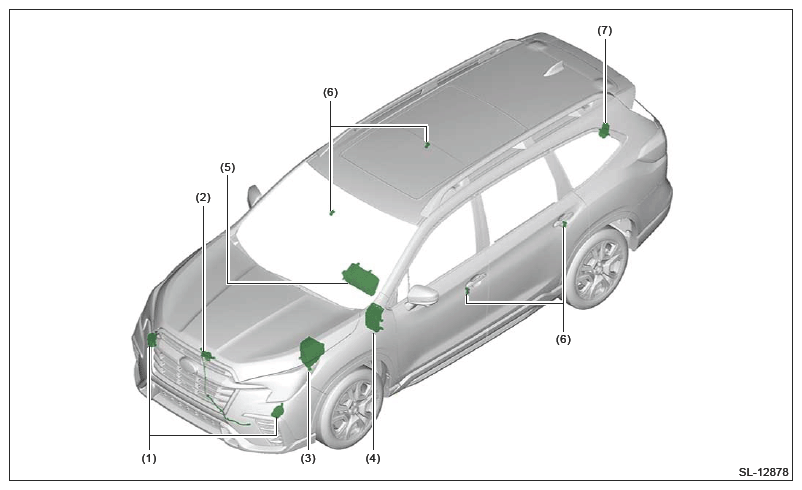

G16445250Courtesy of SUBARU OF AMERICA, INC.
(1) Horn
(2) Hood switch
(3) Horn relay (in main fuse box)i
(4) Body integrated unit
(5) Security indicator light (in combination meter)
(6) Door switch
(7) Rear gate latch switch
