Front Hood Lock

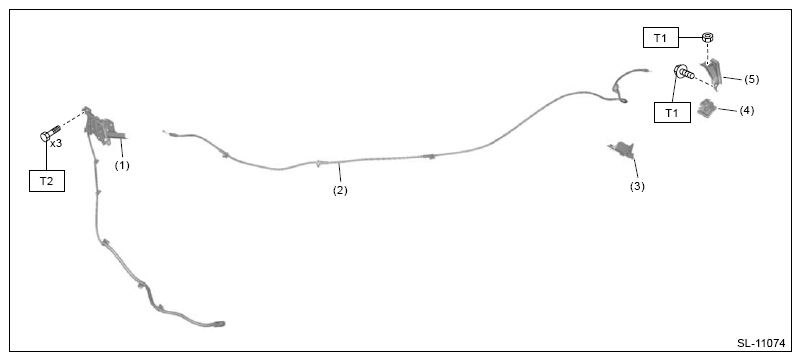

Fig 1: Front Hood Lock Components Location

G16445254

Courtesy of SUBARU OF AMERICA, INC.

(1)	Lock ASSY front hood
(2)	Cable ASSY front hood
(3)	Protector cable
(4)	Lever
(5)	Bracket lever

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 33 (3.4, 24.3)
