Radar Sensor
Radar Sensor

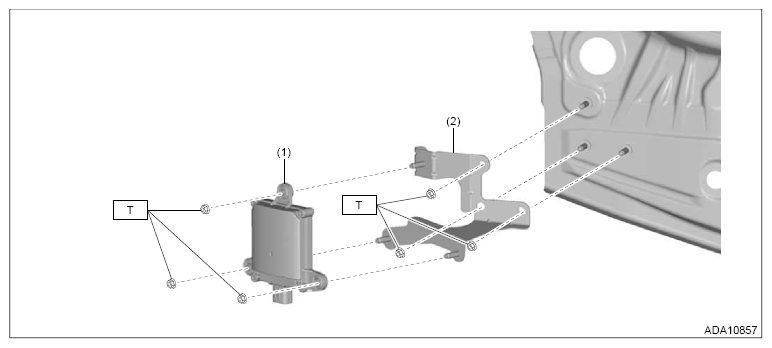

Fig 1: Radar Sensor Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Radar sensor (master & slave)
(2)
Radar bracket
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
