Rear Seat

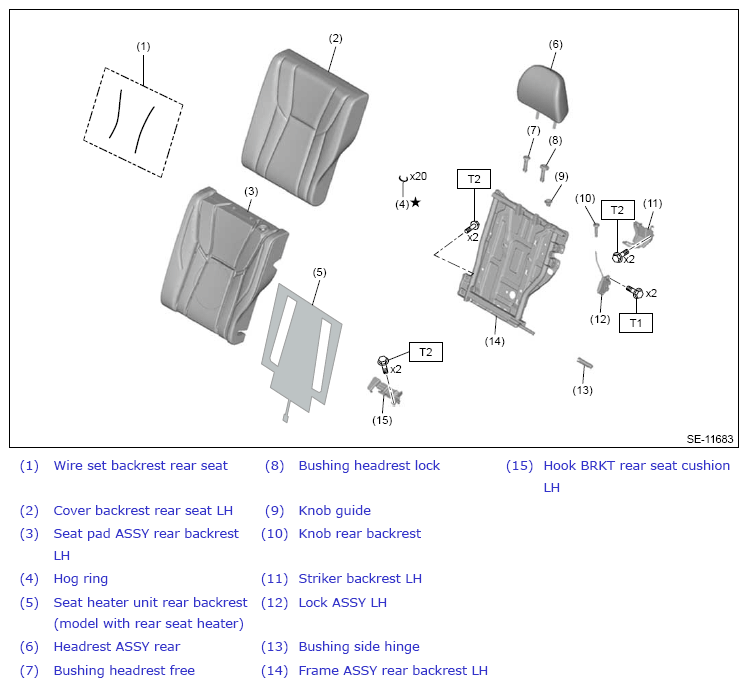

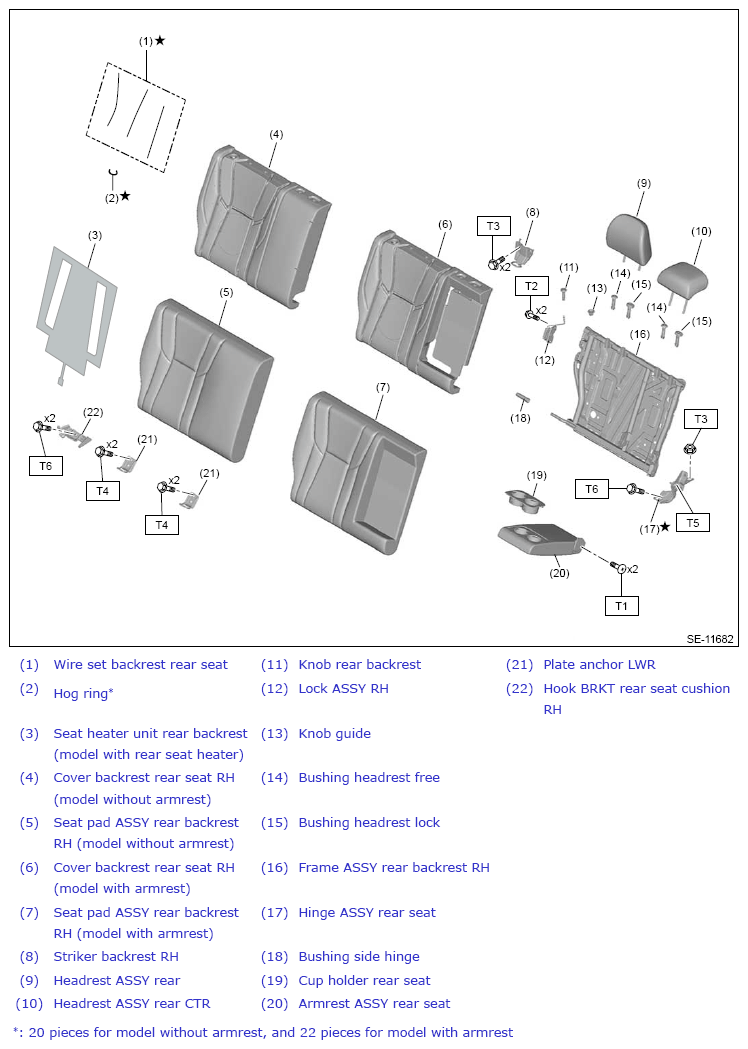

Fig 1: Rear Seat Components (With Torque Specification) (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 14.6 (1.5, 10.8)

T3: 18 (1.8, 13.3)

T3: 24.5 (2.5, 18.1)

T5: 29 (3.0, 21.4)

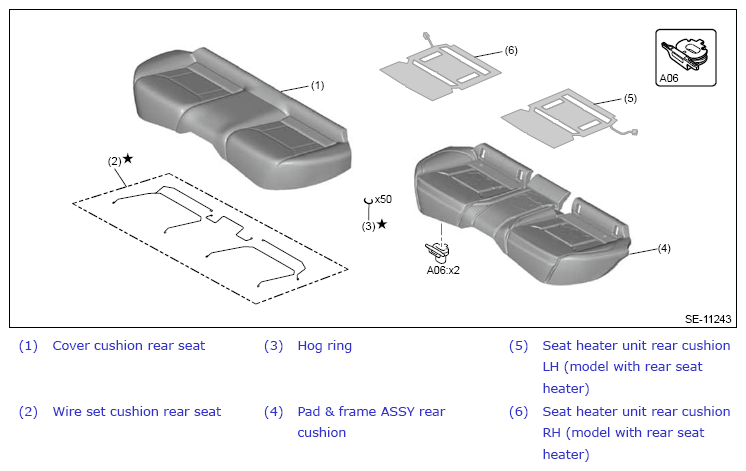

Fig 2: Rear Seat Components (With Torque Specification) (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2: 33 (3.4, 24.3)

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

The seating sensor mat is integrated into the pad & frame assembly rear cushion.
