Master Cylinder: Installation
- Apply grease to the push rod.
Preparation items:
Grease: Silicone grease G-40M or equivalent
- Set the push rod to the master cylinder.
- Install the master cylinder.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
- Connect the clutch pipe C and clutch pipe D using a crowfoot wrench.TIGHTENING TORQUE SPECIFICATIONS

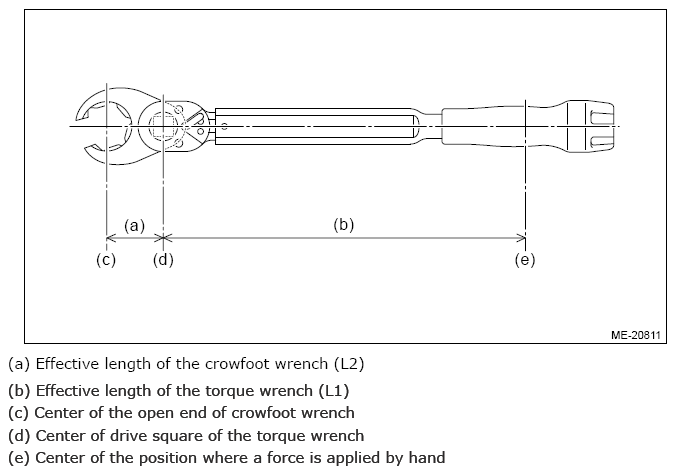

Calculation formula T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2) T: Reading of the torque wrench
L1: Effective length of the torque wrench
L2: Effective length of the crowfoot wrenchNOTE:If the effective length of the tool used is unknown, consult the manufacturer of the tool.
- Apply grease to the outer periphery of the clevis pin A.CAUTION:
Always use a new clevis pin A.
Preparation items:
Grease: NIGTIGHT LTS No. 2 or equivalent
- Align the holes on the clutch pedal and push rod, and install the clevis pin A and clip.CAUTION:
Always use a new clip.
- Install the clutch pedal. Ref. to BRAKE>BRAKE PEDAL>INSTALLATION
- Bleed air from the clutch fluid. Ref. to CLUTCH SYSTEM>AIR BLEEDING>PROCEDURE
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
