M/T Clutch System: Flywheel: Removal

CAUTION:

Do not wash the pilot bearing since it is filled with grease.

Remove the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>REMOVAL
Remove the clutch cover and clutch disc. Ref. to CLUTCH SYSTEM>CLUTCH DISC AND COVER>REMOVAL

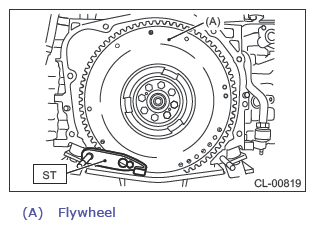

Using the ST, fasten the flywheel.
NOTE:
Use bolts with M8 x P1.25 and a bolt length of approx. 15 mm for securing ST and the flywheel.

Preparation tool:

ST: CRANKSHAFT STOPPER (498497100)

Courtesy of SUBARU OF AMERICA, INC.

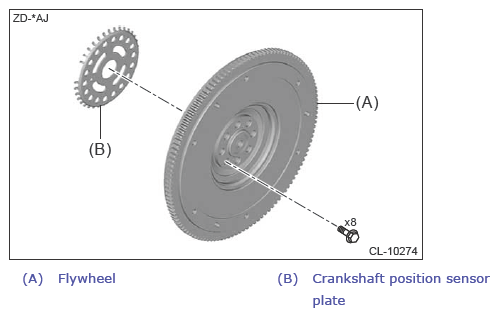

Remove the flywheel and crankshaft position sensor plate.

Courtesy of SUBARU OF AMERICA, INC.
Remove ST (CRANKSHAFT STOPPER).
Drive out the pilot bearing.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
