Pillow Ball Bushing

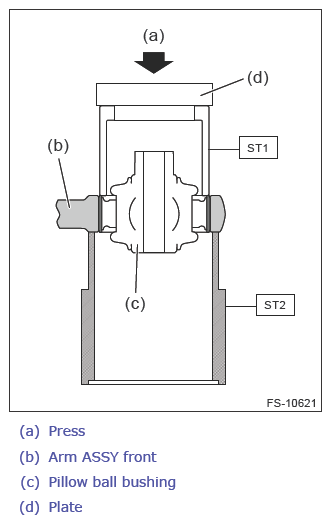

  1. Remove the pillow ball bushing using ST1 and ST2.

    Preparation tool:

    ST1: INSTALLER & REMOVER (20099AE020)

    ST2: HOUSING STAND (28099PA010)

    NOTE:

    Place a metal plate on the ST1 to use the press.

G14601742Courtesy of SUBARU OF AMERICA, INC.
