Standard Damper Model
CAUTION:
- For parts which are not reusable, always use new parts.
- When installing the coil spring compressor to the coil spring rear, follow the operation manual accompanied with the coil spring compressor during operation.
- Do not use an impact wrench to compress the coil spring rear.
- Before assembly, check each part. Ref. to REAR SUSPENSION>REAR SHOCK ABSORBER>INSPECTION .
- Using a coil spring compressor, compress the coil spring rear.

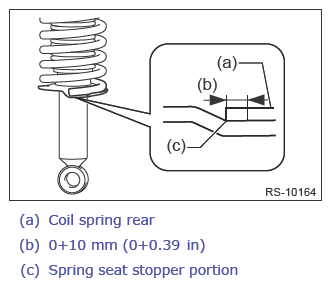

- Install by aligning the edge surface of the coil spring rear with the stopper portion of t lower side spring seat.
- Install the helper rear and dust cover rear to the piston rod.
- Fully pull up the piston rod in the upward direction.
- Install the mount shock absorber rear.
- Temporarily install the mount shock absorber rear with new self-locking nuts.NOTE:

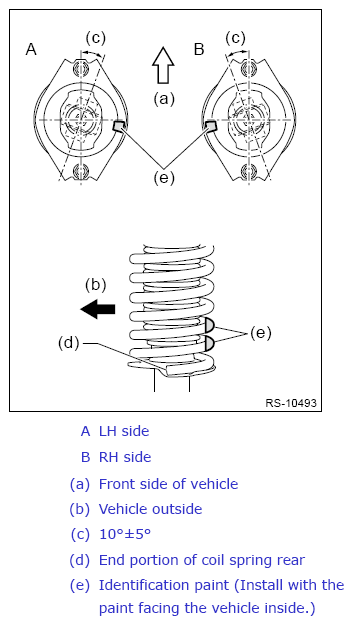

Position the mount shock absorber as shown in the figure.
- Using a hexagon wrench, prevent the piston rod of shock absorber COMPL rear from turning.
- Using the ST, tighten the self-locking nut to the specified torque.
Preparation tool:
ST: STRUT MOUNT SOCKET (20399FG000)
Tightening torque:
25 N.m (2.5 kgf-m, 18.4 ft-lb)
- Temporarily install the mount shock absorber rear with new self-locking nuts.
- Loosen the coil spring compressor while being careful that the coil spring rear and the spring seat seating surface are not misaligned.
