Tie-rod end: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL

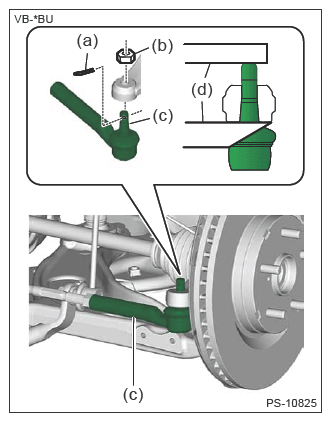

  2. Disconnect the tie-rod end.
    1. Remove the cotter pin (a).
    2. Remove the castle nut (b).
    3. Using a ball joint puller (d), remove the tie-rod end (c).
      CAUTION:
      • Be careful not to damage the boot of the ball joint.
      • Be careful not to damage the peripheral parts.
      G14612051Courtesy of SUBARU OF AMERICA, INC.

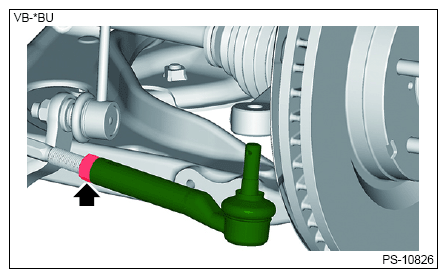

  3. Loosen the lock nut, and remove the tie-rod end.
    G14612052Courtesy of SUBARU OF AMERICA, INC.
