Electric Power Steering Gearbox: Inspection: Limit
Make a measurements as follows. If it exceeds the specified service limits, adjust or replace.
NOTE:
When fixing the steering gearbox assembly in a vise, apply a wooden piece on the flange portion.

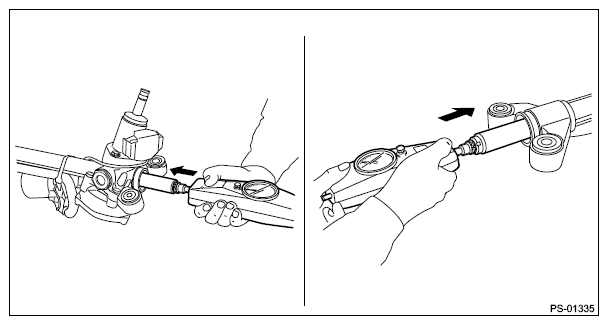

Rack shaft sliding resistance:
Limit: 457 N (47 kgf, 103 lbf) or less
Difference between right and left sliding resistance: 20% or less
