Rear Seat Belt

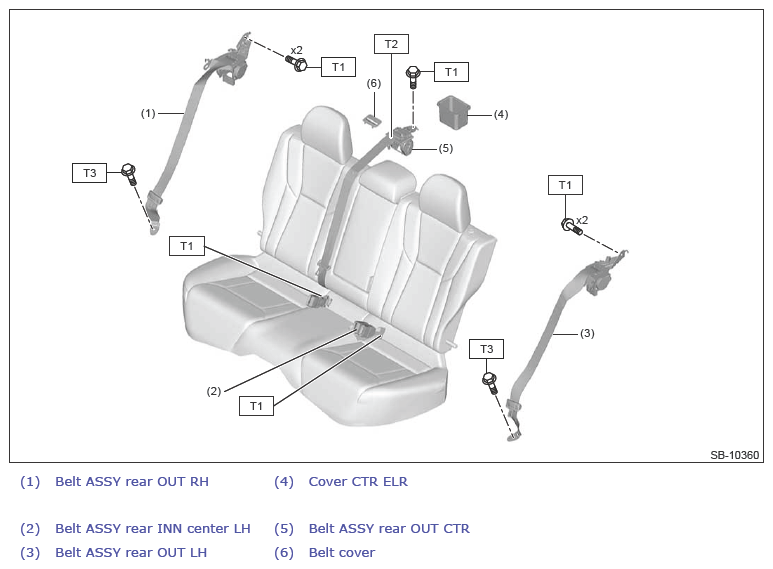

Fig 1: Rear Seat Belt Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)

T3: Ref. to SEAT BELT SYSTEM>REAR SEAT BELT>INSTALLATION>BELT ASSEMBLY REAR OUT RH AND LH .
