Tie-Down Range

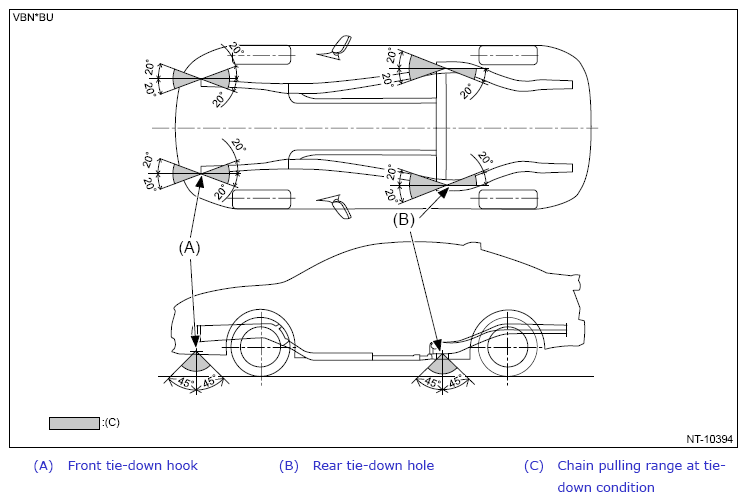

- For ground transportationCAUTION:
When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

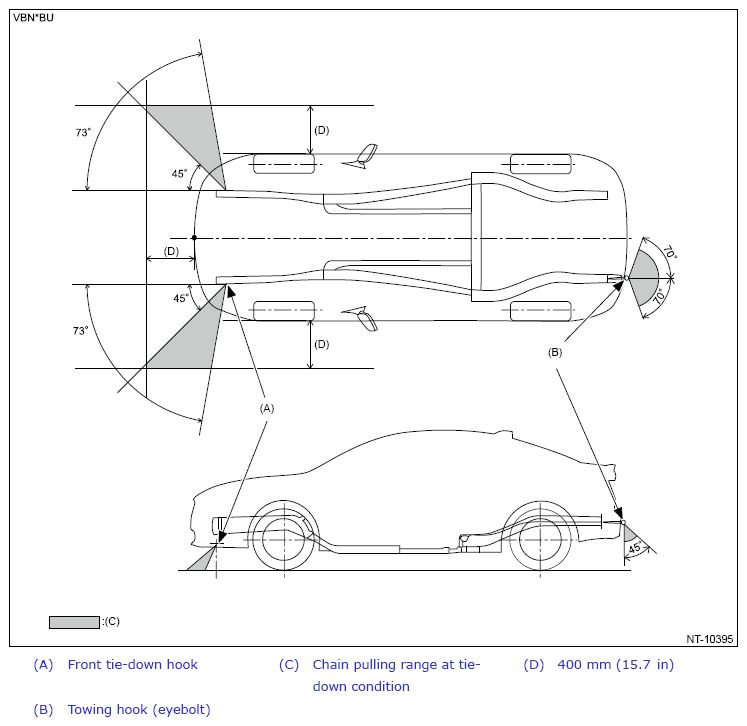

- For sea transportationCAUTION:
Hook on the front tie-down hook from vehicle outside, and tie down toward vehicle outside.
Also, hook on the front tie-down hook and the towing hook (eyebolt) from top to bottom.
The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.

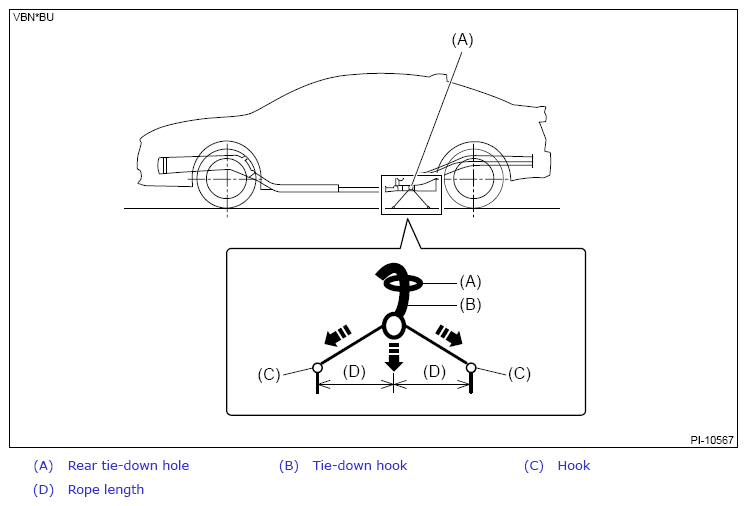

- Tie-down at 2 locationsCAUTION:
Pull the tie-down hook rope evenly to the front and rear side. Do not hook the hooks outside the wheelbase to avoid up/down pitching.
NOTE:The length (D) should be the same.
