Keyless Access System
CAUTION:
- When performing the check, check one access key at a time, separating individual keys.
- Do not leave any separated access keys in the vehicle.
NOTE:
The following inspections show the initial settings. When the settings are different from the initial settings, use Subaru Select Monitor to check the details of each setting for inspections. Ref. to BODY CONTROL (DIAGNOSTICS)>DATA MONITOR>LIST
- While carrying the access key, check that the room light illuminates when you move close to the front door handles of the vehicle whose doors are all locked.
- While carrying the access key, check that only the driver's door is unlocked or all doors are unlocked, the hazard lights flash, and the buzzer sounds by grasping the front door knob on the driver's side (touching the touch sensor (unlock)).
- While carrying the access key, check that all doors are unlocked, the hazard lights flash, and the buzzer sounds by grasping the front door knob on the passenger's side (touching the touch sensor (unlock)).

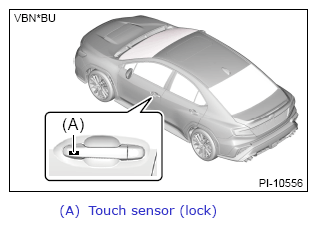

- While carrying the access key, check that all doors are locked and the hazard lights flash by touching the touch sensor (lock) of the front door.NOTE:
- The buzzer sounds twice and the hazard lights flash twice when unlocking.
- The buzzer sounds once and the hazard lights flash once when locking.
- While carrying the access key, check that the trunk unlocks, the hazard lights flash twice, and the buzzer sounds twice when the trunk opener button is pressed.
- Manually operate the access key button to check the unlock/lock of doors, and the flashing of hazard lights.
- Check for unlocking/locking by using the mechanical key attached to the access key.CAUTION:
The mechanical key is a single groove type. Insert the mechanical key with the groove side facing the front side of the vehicle.
- Check that the warning buzzer sounds and the door-lock does not operate, when the doors are closed with the access key left in the vehicle and the touch sensor (lock) on door is touched.CAUTION:
Remove the mechanical key from the access key and hold the mechanical key.
- With the access key in the trunk, check that the warning buzzer sounds when you close the trunk and that the trunk unlocks when you press the trunk opener button.
