Oil Catch Tank: Installation

Use a new gasket to temporarily attach the oil catch tank.

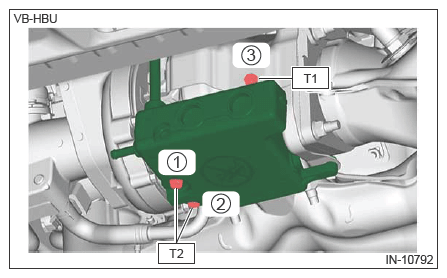

Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 10.5 N.m (1.1 kgf-m, 7.7 ft-lb)

Fig 1: Oil Catch Tank Bolts (With Torque Specifications)
Courtesy of SUBARU OF AMERICA, INC.

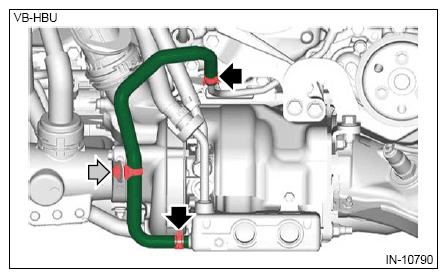

Install a new engine oil hose and attach the clip to the hose stay.

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION

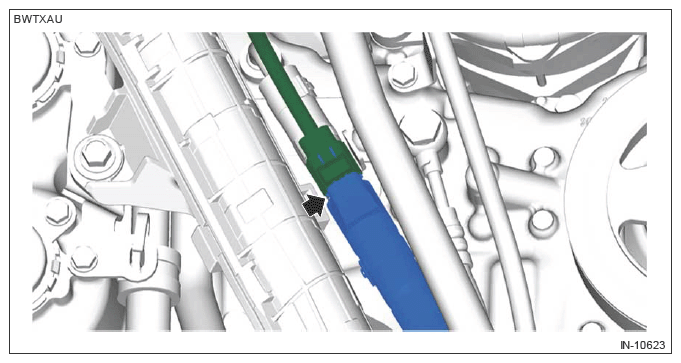

Connect the PCV hose assembly No. 2 to the PCV hose assembly No. 1.
NOTE:
Make sure that the blow-by diagnosis connector is connected securely.

Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>INSTALLATION
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Check the engine oil level and replenish the engine oil if necessary. Ref. to LUBRICATION (H4DOTC)>ENGINE OIL>INSPECTION
