Air Cleaner Case: Installation

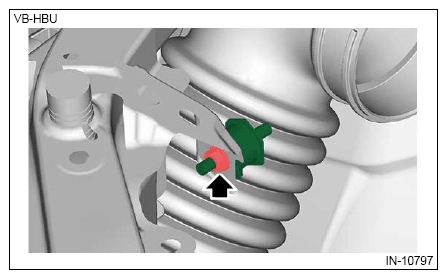

  1. Install the cushion.
    NOTE:

    Align the protrusion of the cushion with the cutout portion on the air cleaner case bracket.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G14610446Courtesy of SUBARU OF AMERICA, INC.

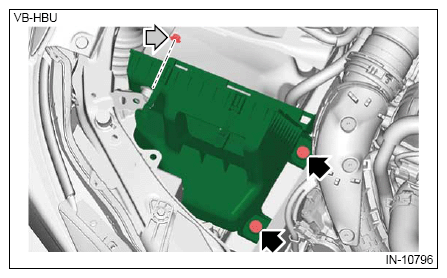

  2. Install the air cleaner case (front).

    Tightening torque:

    Bolt

    6 N.m (0.6 kgf-m, 4.4 ft-lb)

    Nut

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

    G14610445Courtesy of SUBARU OF AMERICA, INC.
  3. Install the air cleaner element and the air cleaner case (rear). Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR CLEANER ELEMENT>INSTALLATION
  4. Connect the turbo duct to the air cleaner case (rear).
    NOTE:

    Align the cutout portion on the turbo duct to the protrusion of the air cleaner case (rear).

    Tightening torque:

    2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

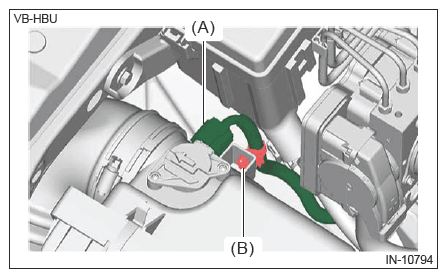

  5. Connect the connector (A) to the mass air flow and intake air temperature sensor and secure the harness with clip (B).
    G14610434Courtesy of SUBARU OF AMERICA, INC.
  6. Install the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>INSTALLATION
  7. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
