Horn System: Horn: Installation

Install the horn assembly Lo to the horn bracket. (Horn assembly Lo)

NOTE:

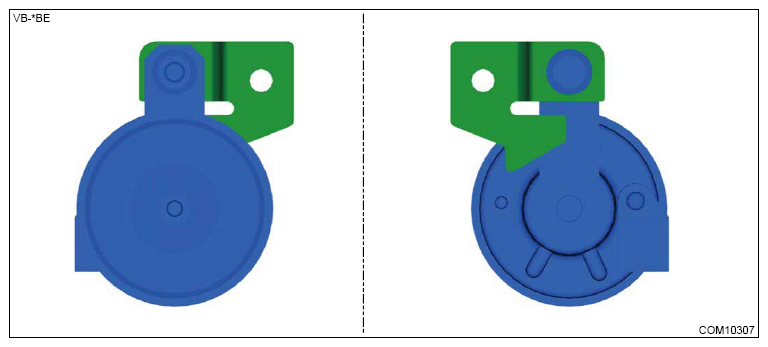

Install the horn assembly Lo and the horn bracket as shown in the figure.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Install the horn assembly, and connect the connector.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the mud guard front. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>INSTALLATION
Lower the vehicle.
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
