Rear Regulator and Motor Assembly: Removal

  1. Operate the switch power window to move the glass assembly rear door to the lowest position.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  3. Remove the trim panel rear door. Ref. to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>REAR DOOR
  4. Remove the sealing cover door rear. Ref. to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>REAR SEALING COVER
  5. Remove the speaker assembly rear. Ref. to ENTERTAINMENT & MONITORING>REAR SPEAKER>REMOVAL
  6. Remove the glass assembly rear door. Ref. to GLASS/WINDOWS/MIRRORS>REAR DOOR GLASS>REMOVAL

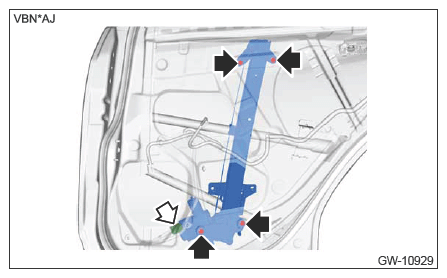

  7. Remove the regulator and motor assembly rear.
    1. Disconnect the connector.
    2. Remove the bolts, and then remove the regulator and motor assembly rear.
      G14612572Courtesy of SUBARU OF AMERICA, INC.
