Driver's Seat

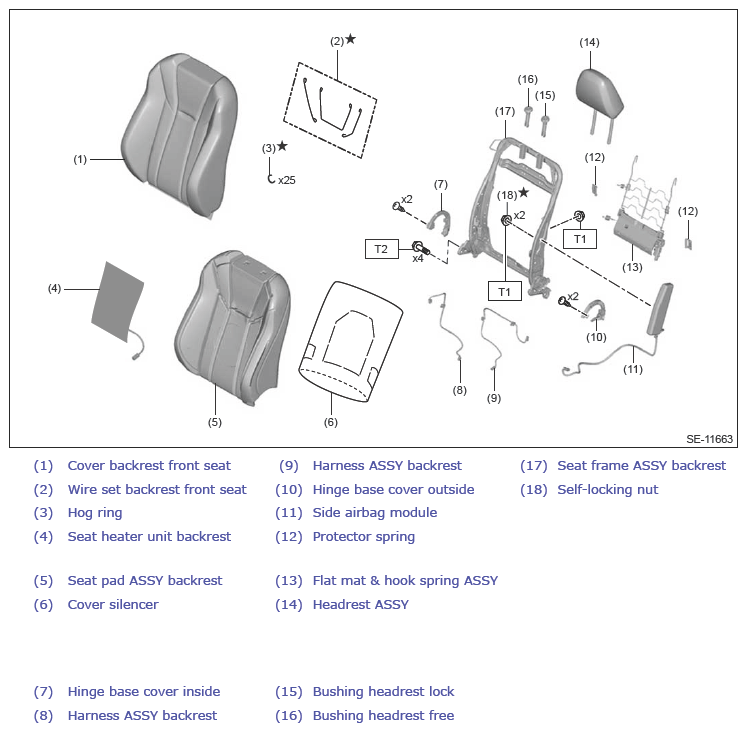

Fig 1: Front Driver Seat Components (With Torque Specification) - Manual Seat (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

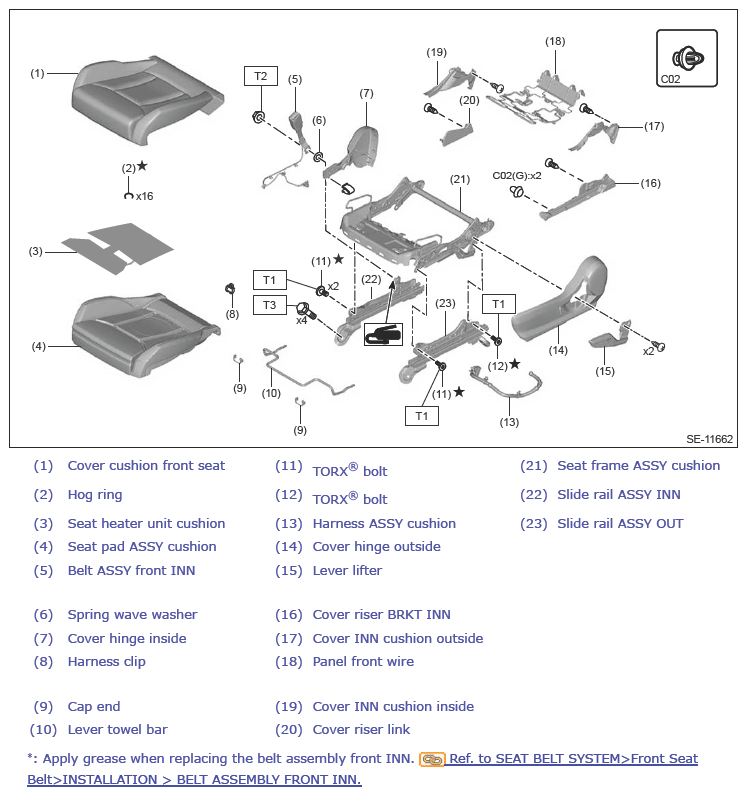

Fig 2: Front Driver Seat Components (With Torque Specification) - Manual Seat (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 17.6 (1.8, 13.0)

T2: 38 (3.9, 28.0)

T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .

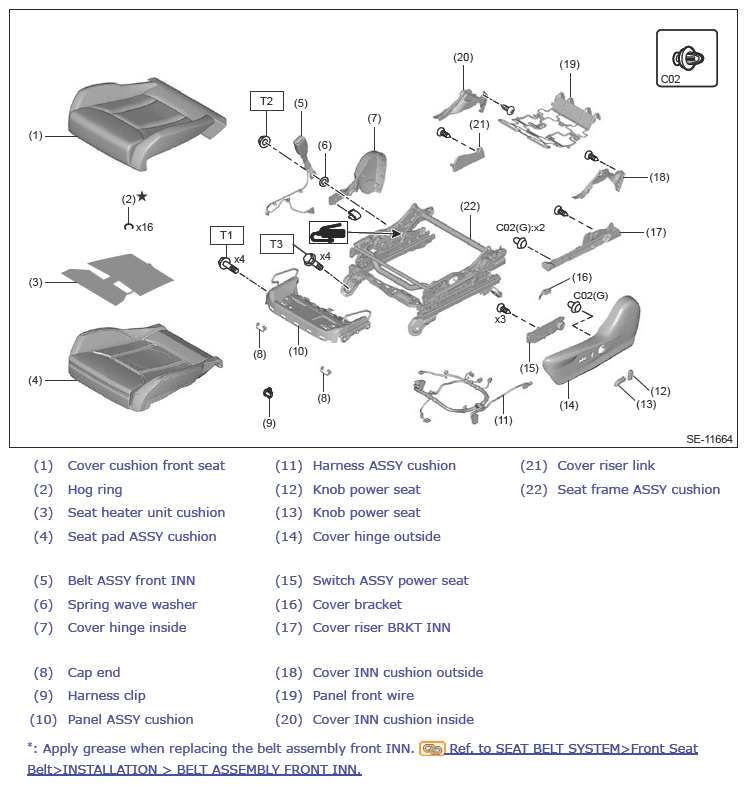

Fig 3: Front Driver Seat Components (With Torque Specification) - Power Seat (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .

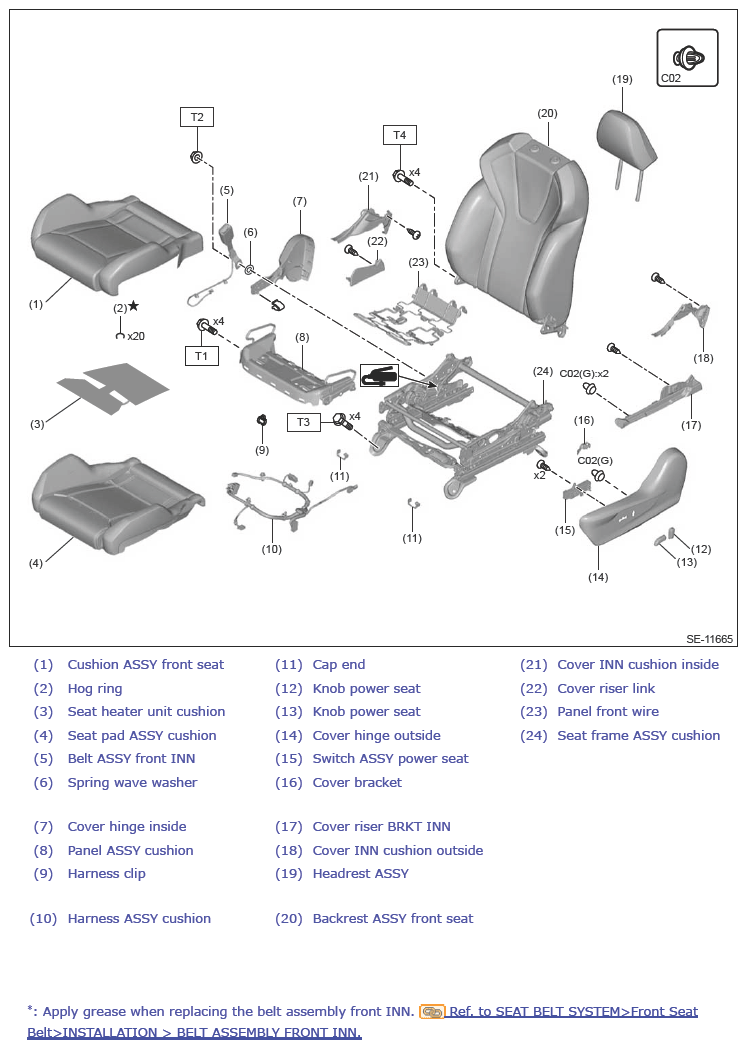

Fig 4: Front Driver Seat Components (With Torque Specification) - Power Seat (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 38 (3.9, 28.0)

T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .

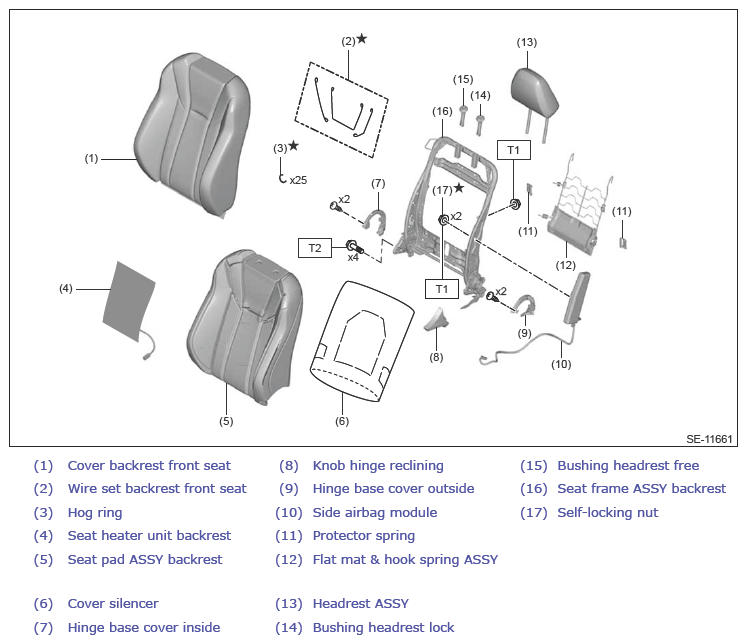

Fig 5: Front Driver Seat Components (With Torque Specification) (Recaro Seat)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 38 (3.9, 28.0

T3: Ref. to SEATS>FRONT SEAT>INSTALLATION .

T4: Ref. to SEATS>FRONT SEAT>ASSEMBLY>SEAT COMMON OPERATION PROCEDURE .
