Central Gateway Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the panel assembly center. Ref. to EXTERIOR/INTERIOR TRIM>CENTER CLUSTER>REMOVAL
  3. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL
  4. Remove the central gateway control module.
    CAUTION:

    Be careful to keep water and other foreign materials away from the central gateway control module terminals.

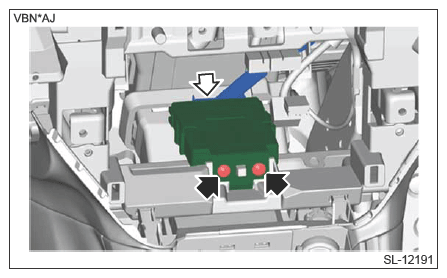

    1. Remove the screws and pull out the central gateway control module.
    2. Disconnect the connector and remove the central gateway control module.
      G14612864Courtesy of SUBARU OF AMERICA, INC.
