Unit Inspection
WARNING: This page is about a different variant/trim than selected.
- Check that there is no deformation, cracks, and any other damage.
- Measure the resistance between switch terminals.
 Courtesy of SUBARU OF AMERICA, INC.
|
 Courtesy of SUBARU OF AMERICA, INC.
|
Terminal No.:
1 - 2
Judgment standards:

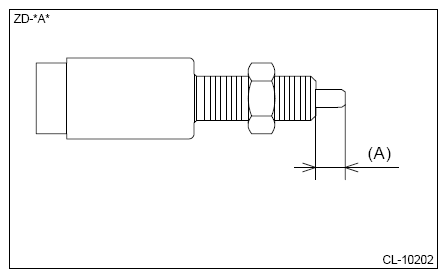

When section (A) is 9.0 - 10.0 mm (0.35 - 0.39 in) long, it turns ON ←→ OFF.
Resistance value:
ON: Less than 1 Ω
OFF: 1 MΩ or more
