Clutch Pedal: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch pipe. Ref. to CLUTCH SYSTEM>CLUTCH PIPE AND HOSE>REMOVAL
  2. Remove the master cylinder. Ref. to CLUTCH SYSTEM>MASTER CYLINDER>REMOVAL
  3. Remove the clutch switches. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>REMOVAL
  4. Remove the clutch start switch. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>REMOVAL

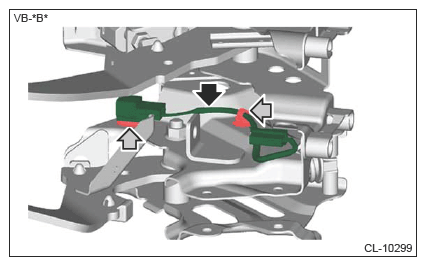

  5. Remove the harness connector.
    G14611981Courtesy of SUBARU OF AMERICA, INC.

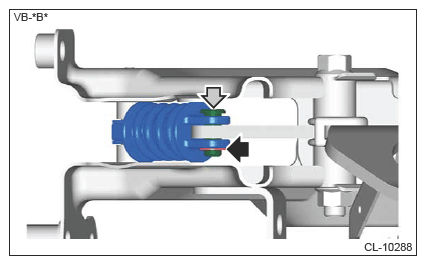

  6. Remove the clip and assist pin, and remove the assist spring assembly.
    G14611982Courtesy of SUBARU OF AMERICA, INC.

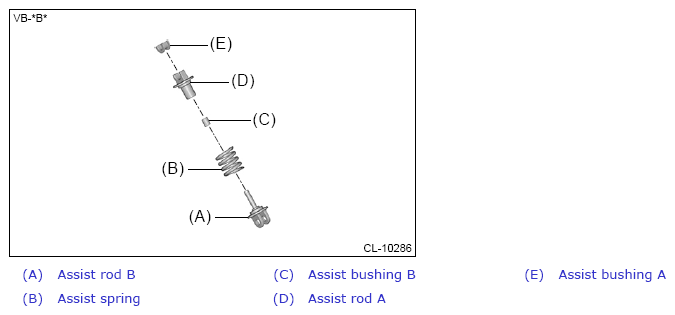

  7. Disassemble the assist rod A, assist bushing A, assist spring, assist rod B, and assist bushing B.
    G14611983Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the clutch pedal.
    G14611984Courtesy of SUBARU OF AMERICA, INC.

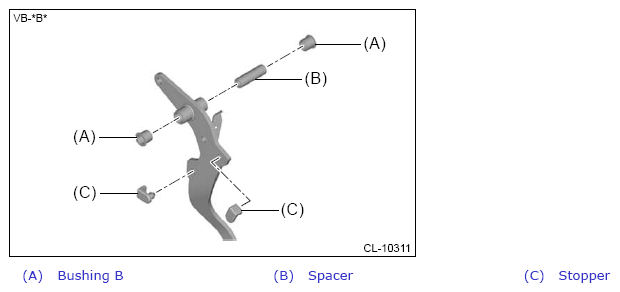

  9. Remove the bushing B, spacer and stopper.
    G14611985Courtesy of SUBARU OF AMERICA, INC.

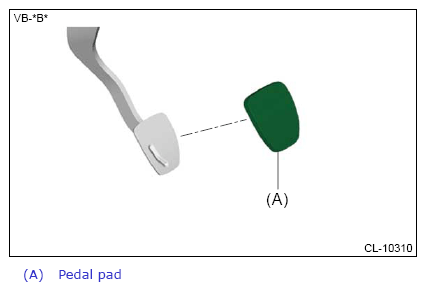

  10. Remove the pedal pad.
    G14611986Courtesy of SUBARU OF AMERICA, INC.

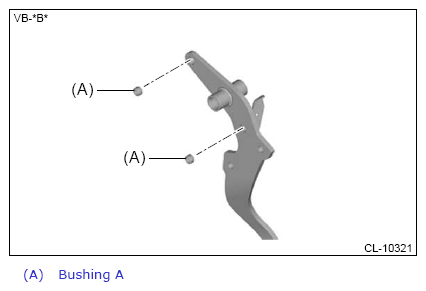

  11. Remove the bushing A.
    NOTE:

    Perform this procedure only when required.

    G14611987Courtesy of SUBARU OF AMERICA, INC.
