Clutch Pedal: Assembly

WARNING: This page is about a different variant/trim than selected.

Using a press, press-fit the bushing A.
CAUTION:
Be careful not to set the bushing A at an angle.

NOTE:
Press-in the part so that it is parallel to the lever.
Install the pedal pad.

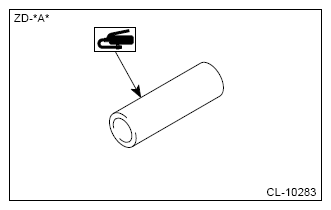

Apply grease to the outer periphery of the spacer.
Preparation items:

Grease: NIGTIGHT LTS No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the stopper, spacer and bushing B.

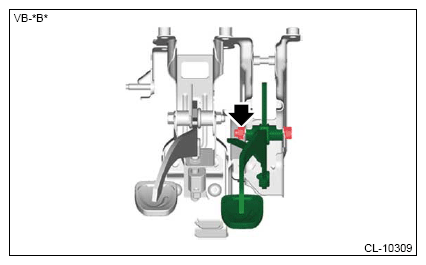

Install the clutch pedal.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

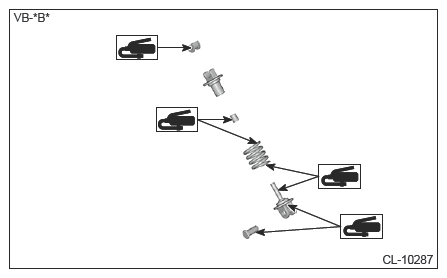

Apply grease to the sliding surfaces of the assist rod A, assist rod B, assist bushing A, assist bushing B, assist spring, and assist pin.
Preparation items:

Grease: NIGTIGHT LTS No. 2 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Assemble the assist bushing B, assist rod B, assist spring, assist bushing A, and assist rod A.
Set the assist spring assembly, and then install the assist pin and clip.
CAUTION:
Always use a new clip.
Attach the harness connector.
Install the clutch start switch. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>INSTALLATION
Install the clutch switch. Ref. to CLUTCH SYSTEM>CLUTCH SWITCH>INSTALLATION
Install the master cylinder. Ref. to CLUTCH SYSTEM>MASTER CYLINDER>INSTALLATION
Install the clutch pipe. Ref. to CLUTCH SYSTEM>CLUTCH PIPE AND HOSE>INSTALLATION
