Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Set the ST and clutch disc.
    CAUTION:

    Install the clutch disc so that its part number is on the transmission side.

    NOTE:
    • Center the clutch disc.
    • Before installing the clutch disc, check its facing surface, the pressure plate, and the flywheel for foreign matter adhesion.

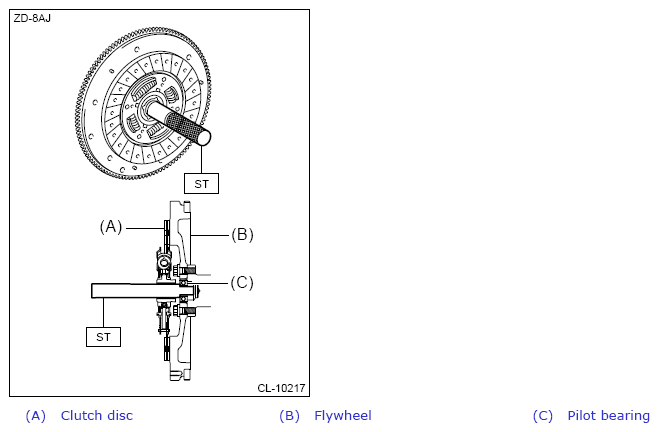

    Preparation tool:

    ST: CLUTCH DISC GUIDE (499747100)

    G14611918Courtesy of SUBARU OF AMERICA, INC.
  2. Temporarily install the clutch cover.
    NOTE:

    Temporarily install the bolts with your hand.

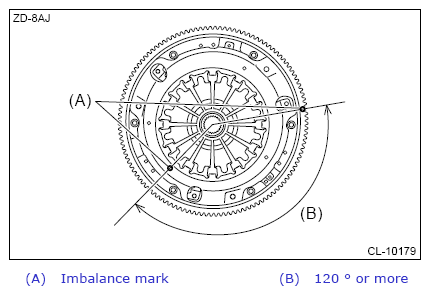

    • When replacing the existing flywheel and clutch cover with new ones
      G14611919Courtesy of SUBARU OF AMERICA, INC.

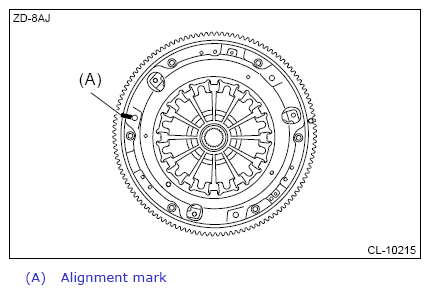

    • When reusing the existing flywheel and clutch cover
      G14611920Courtesy of SUBARU OF AMERICA, INC.
  3. Tighten the bolts in the numerical order as shown in the figure.
    NOTE:
    • Equally tighten the bolts several times.
    • To prevent the clutch disc from moving from the center, adjust its position by using the ST (CLUTCH DISC GUIDE).

    Tightening torque:

    16 N.m (1.6 kgf-m, 11.8 ft-lb)

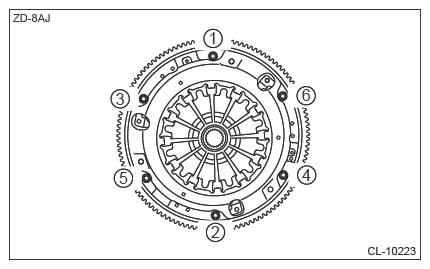

    Fig 1: Clutch Disc Bolts Tightening Sequence
    G14611921Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ST (CLUTCH DISC GUIDE).
  5. Install the release bearing and release lever. Ref. to CLUTCH SYSTEM>RELEASE BEARING AND LEVER>INSTALLATION
  6. Install the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>INSTALLATION
