Plate & Vacuum Pump

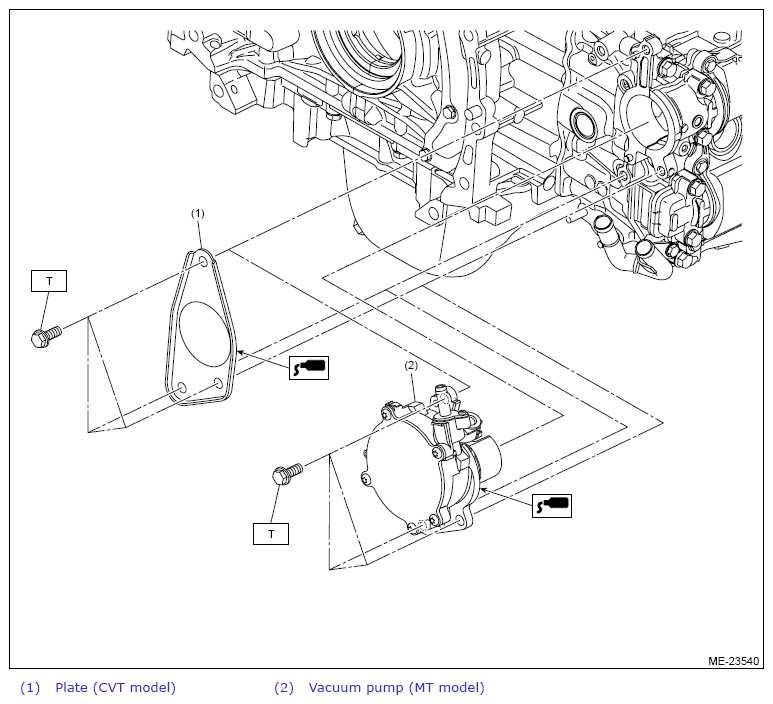

Fig 1: Plate And Vacuum Pump Components (With Torque Specifications)

G14610509

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 16 (1.6, 11.8)
