Hood Cable Assembly

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to  AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the mud guard front LH. Ref. to EXTERIOR/INTERIOR TRIM>MUD GUARD>REMOVAL
  3. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL
  4. Remove the lock assembly front hood, and then attach a string to the end of the cable assembly front hood. Ref. to SECURITY AND LOCKS>FRONT HOOD LOCK ASSEMBLY>REMOVAL>HOOD LOCK ASSEMBLY
    NOTE:

    A string makes operation easier during installation.

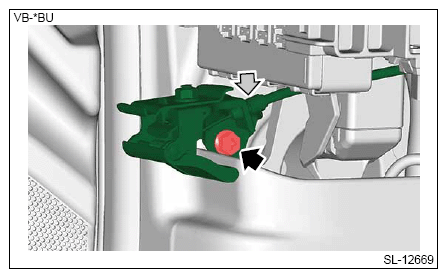

  5. Remove the opener handle.
    1. Remove the cable assembly front hood.
    2. Remove the bolt, and remove the opener handle.
      G14612805Courtesy of SUBARU OF AMERICA, INC.

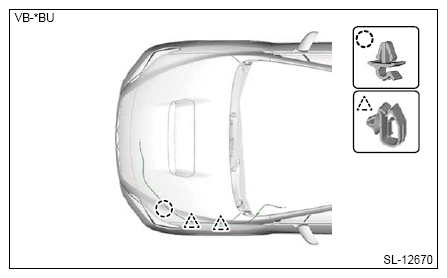

  6. Remove the cable assembly front hood.
    1. Remove the cable assembly front hood from the clips.
      G14612806Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the attached string from the end of the cable assembly front hood.
      NOTE:

      Leave the string attached to the body, and use it during installation.
