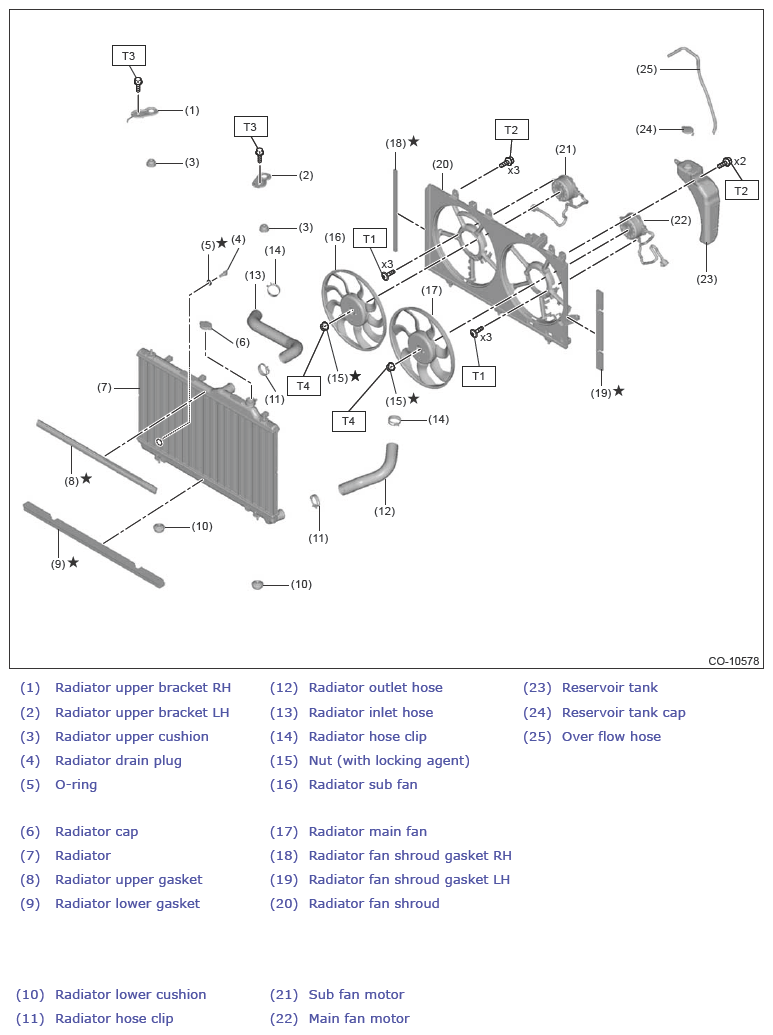

Radiator And Radiator Fan
WARNING: This page is about a different variant/trim than selected.
Tightening torque: N.m (kgf-m, ft-lb)
T1: 4 (0.4, 3.0)
T2: 7.5 (0.8, 5.5)
T3: 12 (1.2, 8.9)
T4: Ref. to COOLING (H4DO)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>ASSEMBLY .
