CVTF Cooler (With Warmer Function): Disassembly

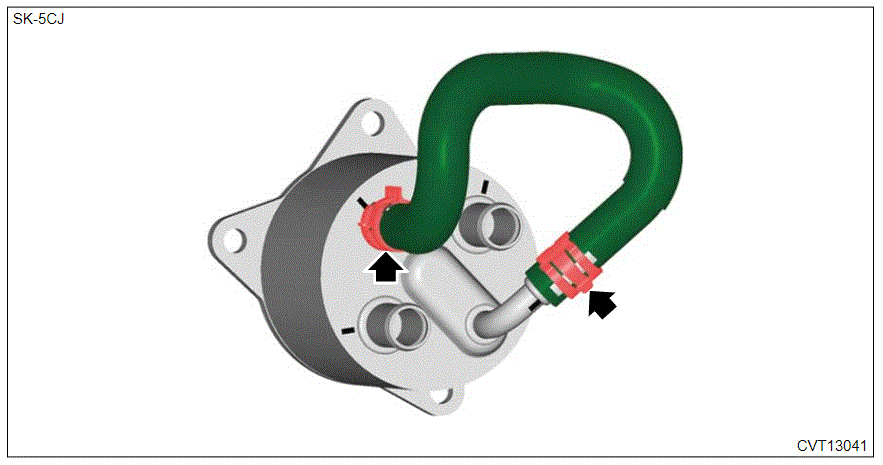

  1. Remove the CVTF cooler hose. (Model without CVTF cooler (air cool))
    NOTE:

    Perform this procedure only when required.

    G00611036Courtesy of SUBARU OF AMERICA, INC.
