Home >> Subaru >> 2022 >> Outback Limited >> Repair and Diagnosis (Single Page) >> Body & Frame >> Windows >> Window Glass & Mirrors >> General Description >> Components With Torque Specifications >> Fixed Glass >> Outback Model

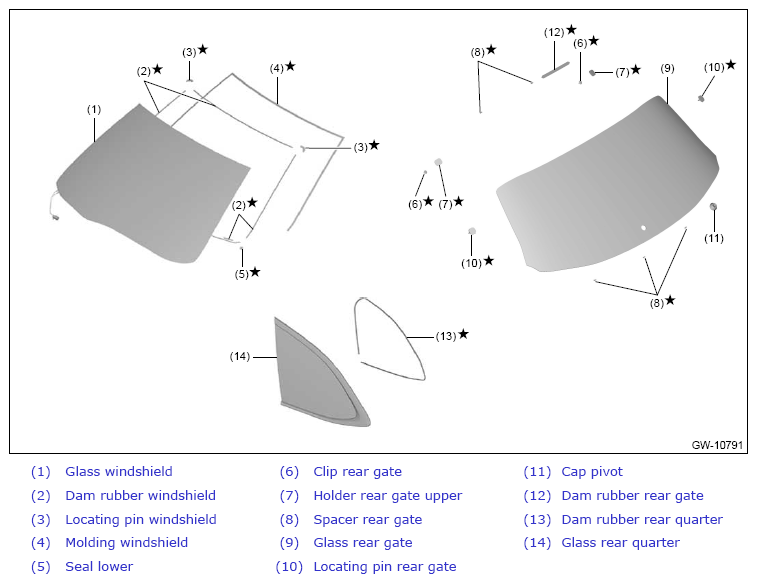

Outback Model

G13953313

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

Inner mirror base cannot be removed from the windshield glass.
