Hanger Bracket

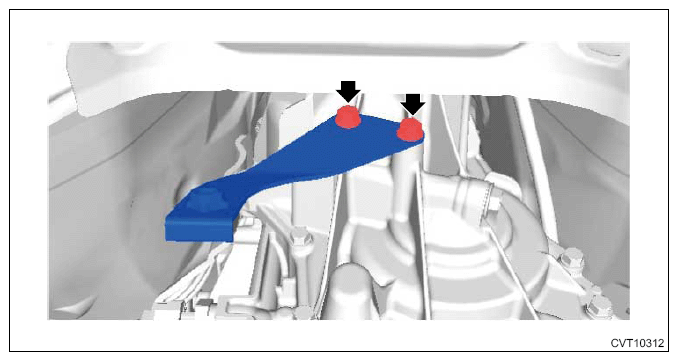

  1. Install the hanger bracket. Ref. to EXHAUST(H4DO)>GENERAL DESCRIPTION>COMPONENT > FRONT EXHAUST PIPE .
    G13950314Courtesy of SUBARU OF AMERICA, INC.
  2. Install the front exhaust pipe. Ref. to EXHAUST(H4DO)>FRONT EXHAUST PIPE>INSTALLATION .
  3. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
