Engine Control Module (ECM): Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

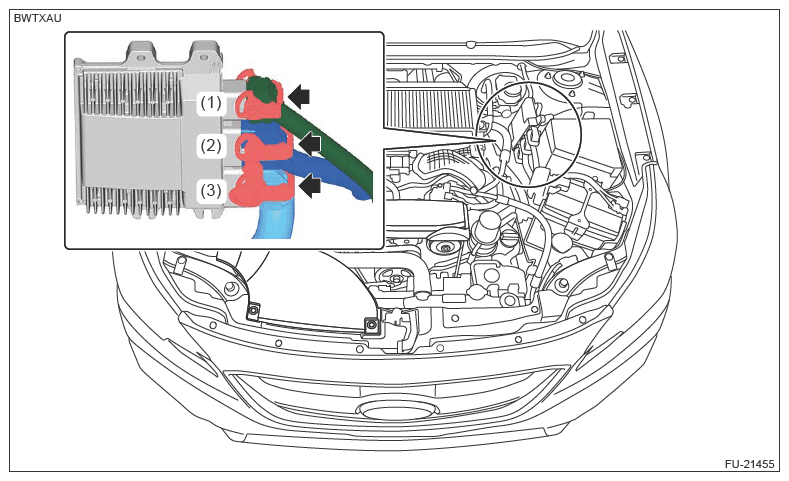

  2. Disconnect the connector in numerical order as shown in the figure.
    G13948411Courtesy of SUBARU OF AMERICA, INC.

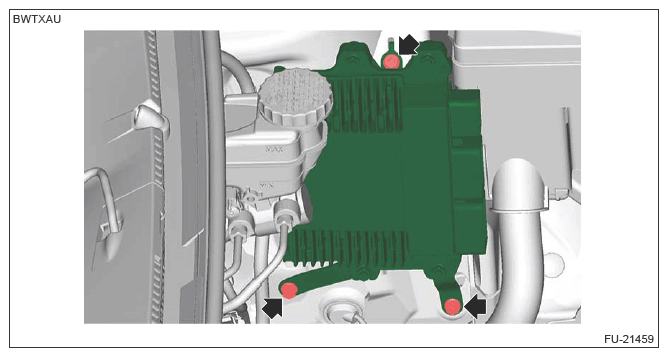

  3. Remove the ECM from vehicle.
    G13948412Courtesy of SUBARU OF AMERICA, INC.

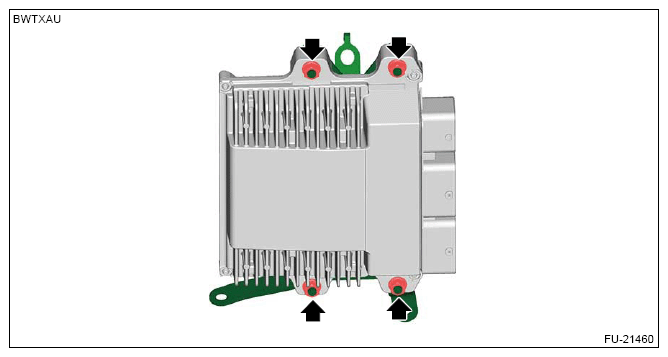

  4. Remove the ECM bracket.
G13948413Courtesy of SUBARU OF AMERICA, INC.
